Metso Full portfolio Nordberg® MP Series™ cone crushers Nordberg® MP1250™ cone crusher

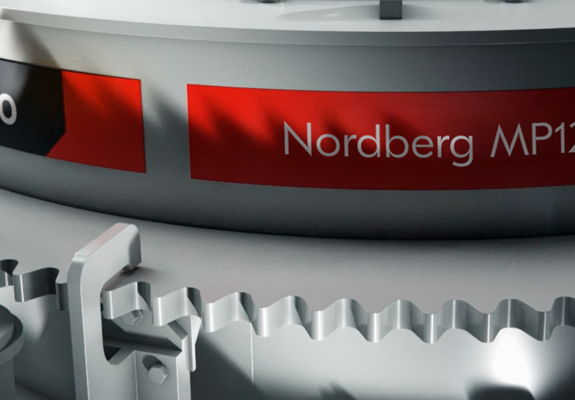

Nordberg® MP1250™ cone crusher

Nordberg® MP1250 cone crusher

High capacity and reduced downtime for mid-sized duties

Nordberg® MP1250 cone crusher is known for high capacity and low maintenance. It is a CAPEX friendly option for any crushing circuit, especially in mining operations.

High availability

Automation and maintained crusher force with a hydraulic clearing system.

High performance

High capacity and the highest crushing force of any cone crusher of similar size.

Ease of maintenance

Push button disassembly and easy modular component replacement if needed.

High reliability

Easy setting adjustment and simple routine maintenance brings reliable production.

Nordberg® MP1250 cone crusher

Metso has four different families of cone crushers. All cone crusher families have their own applications and can apply to different operations. One of the families of cone crushers is named Nordberg® MP Series™ cone crushers. The MP used to only stand for Maximum Power, but now there is so much more to this cone crusher.

Nordberg® MP Series™ cone crushers are designed to have a high capacity and crushing force for size reduction. Nordberg® MP1250™ cone crusher brings a high capacity cone crusher to bring benefits to any operation.

High availability

MP1250 provides more availability for your crushing needs. A fully automated tramp release that passes uncrushables instantaneously allows the high crushing force to be maintained. After the uncrushable material passes through the tramp the production setting is automatically returned to where the cone crusher was set.

The cone crusher availability is further enhanced by the hydraulic clearing system. With a large vertical stroke, material can fall easily and this provides consistent stroke capabilities throughout the entire liners life.

High performance

This cone crusher brings crusher performance to a new level. MP no longer stands for Maximum Power, but now MP is Maximum Performance. Nordberg® MP1250 still does provide the highest crushing power for any cone crusher in similar size.

Advanced crushing dynamics leads to more work per cycle. This crusher increases power draw so that will lead to an increase in capacity, and a higher power-to-production ratio giving energy efficiency too. So MP1250 cone crusher not only performs for you, but also performs to help with a cost-saving operation.

Ease of maintenance

Nordberg® MP1250 features a push button disassembly for routine maintenance. If needed, modular components can be easily replaced.

Attention to detail in every component  has lead to lower downtime because maintenance is so simple.

High reliability

Downtime means more than just lost time in operation. This crusher incorporates hydraulic cavity clearing and easy setting adjustment for minimizing downtime. Push button assembly and disassembly makes routine maintenance easier than ever.

The ruggedness in design has been proven to be reliable in a variety of operations. MP1250 crusher's rotating bowl compensates for feed segregation and uneven feed rates. Even wear in the crushing cavity avoids localized restriction of the feed opening, and achieves consistent size reduction results.

Nordberg® MP1250 cone crusher's technical specifications
