mill liners

Mill liners optimized to meet your targets

Steel, Poly-Met™, Megaliner™, Rubber and Orebed™ mill liners for all mill types

Every mill is unique! Experience from over 8,000 mills worldwide, combined with the market’s most comprehensive offering, means that we can select the optimal mill lining solution for your specific mill.

Performance targets:

Improved sustainability

Long-lasting, high-performing liners designed with sustainability and safety as top priorities



Increased uptime

Shorter and fewer maintenance stops

Lower maintenance costs

Reduced cost of operation, quick and easy maintenance

Optimized throughput

Maximized yearly production

Recycling of used mill liners
Reach your sustainability targets with our mill lining recycling service
Read more about our separation line that can process worn rubber, Poly-Met™, and Megaliner™ liners of all sizes.

Continuous improvement

A mill lining is a customized wear part. Identifying the appropriate type of lining and design is vital for optimizing mill throughput and total grinding costs, including costs for energy, grinding media and maintenance. Furthermore, the design must be constantly optimized to meet your needs. We work closely with our customers and carefully follow their process to make sure the lining we supply is always optimized for current operating conditions.


Metso offers mill linings with materials and designs optimized for each specific application. We can design and supply mill linings for all types of mills - for Metso mills as well as for competitor mills - and for all parts of the mill. Our wide product range, innovations, knowledge and experience makes us unique. Our approach to lining design is focused on grinding performance, mill uptime and safety/sustainability.



Safety first
Safety first

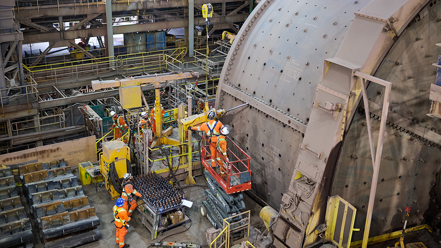

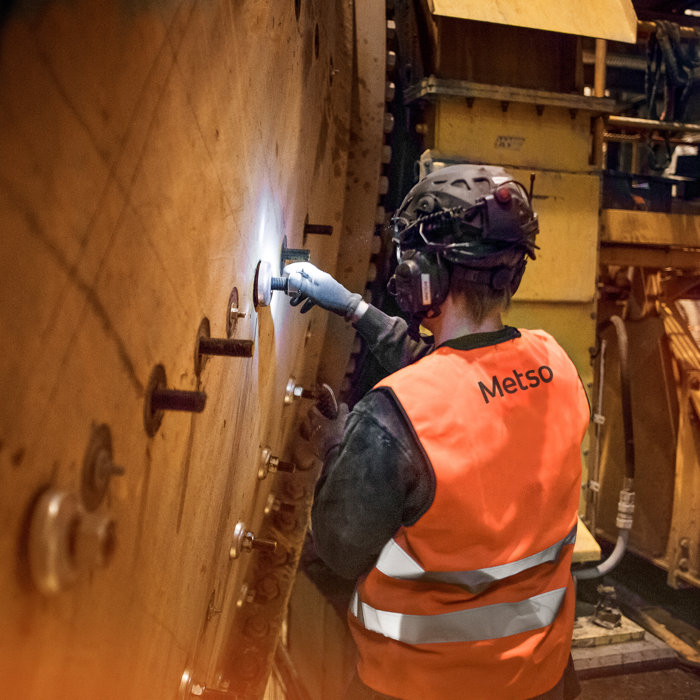

All Metso wear parts are designed with safety as the top priority. We believe that all accidents can be prevented, and we are committed to taking responsibility for our own safety and for the safety of others. Workers' safety is improved by constant development of tools and methods. Installations can be carried out in a safer way by lighter, wear resistant components, guiding markers, Metso Liner Position System and components with a perfect fit.

Our unique attachment system, developed for Megaliner mill liners, is an invention which have made a great difference for workers' safety. Liners are placed by the liner handler operator alone and the bolts are inserted from the outside of the mill.
Local support and global expertise

At Metso, cooperation with our customers and availability to offer support and service are of key importance. We have local support close to our customers, several expertise hubs as well as research facilities focused on wear parts development.

Metso's global laboratory network offers unmatched testing and material development. Our wear parts are manufactured in Metso's global factory network, utilizing the latest technologies and adhering to stringent quality standards. Today we have nine production units focusing on rubber and Poly-Met wear parts and five foundries for metallic wear parts.

Local support and global expertise

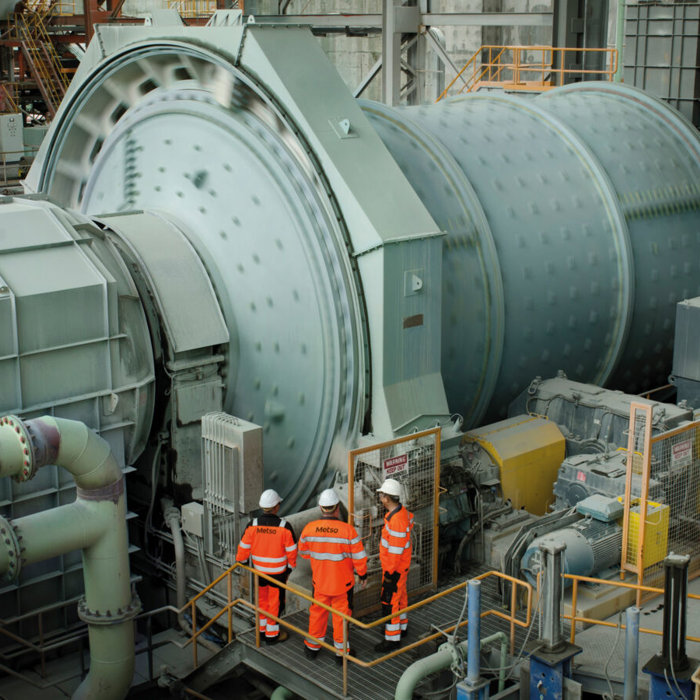

Unique knowledge in grinding
Unique knowledge in grinding

Metso is widely recognized as a technology leader in mill manufacturing, which makes us much more than a service and wear parts supplier – we are true grinding experts. We know the functional parameters, mechanics, kinematics and forces the mill is subjected to in operation. Thinking long term already when buying a mill provides greater opportunities to achieve lower maintenance and operating costs. This, in combination with knowledge about your current operation conditions and targets, is crucial when designing a mill lining.

Leading innovations

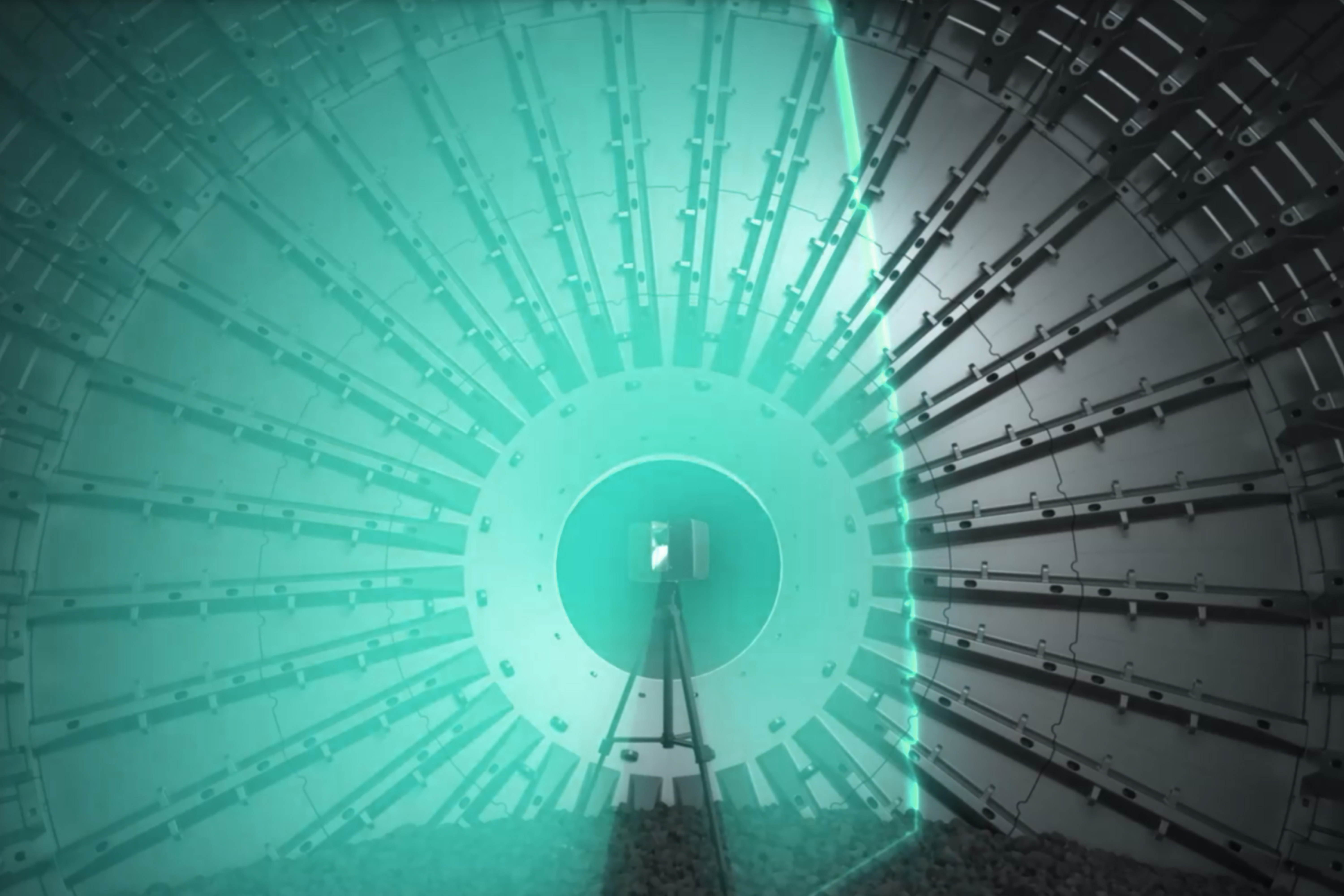

Developing new materials and solutions together with our customers is at the heart of what we do. By choosing Metso, you gain access to the latest innovations and can participate in the process of creating them. We pioneered the use of rubber linings and invented Poly-Met, Megaliner and Orebed mill linings. New products are constantly being developed to enhance our customers’ ever more advancing processes. Our recent innovations include 3D wear reading scanning, full Megaliner™ range, trommel deflector, Turbo Pulp Lifter, Liner Positioning System upgrade and worn liner recycling service.

Leading innovations

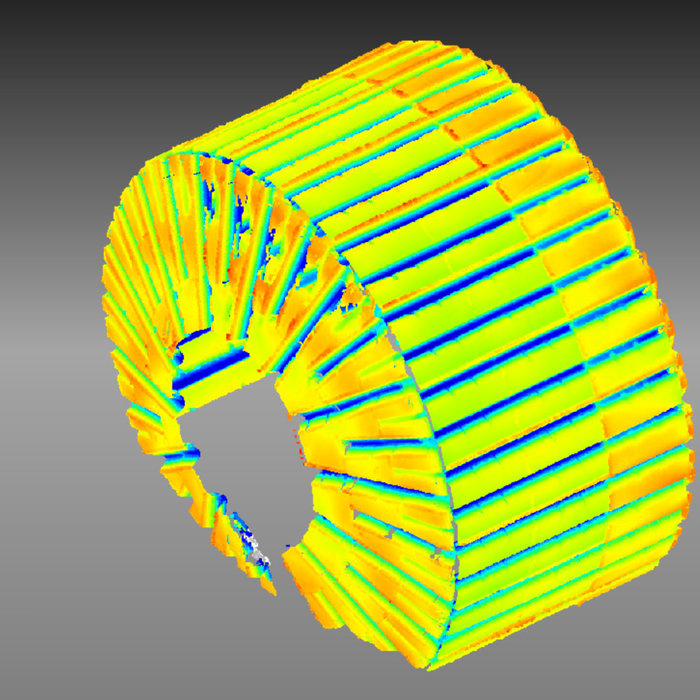

We are constantly working to optimize your mill lining design according to your targets and current conditions
Superior optimization capabilities

By working with a partner who understands the variables affecting grinding performance, you can maximize mill performance and availability, as well as reduce CO2 emissions.

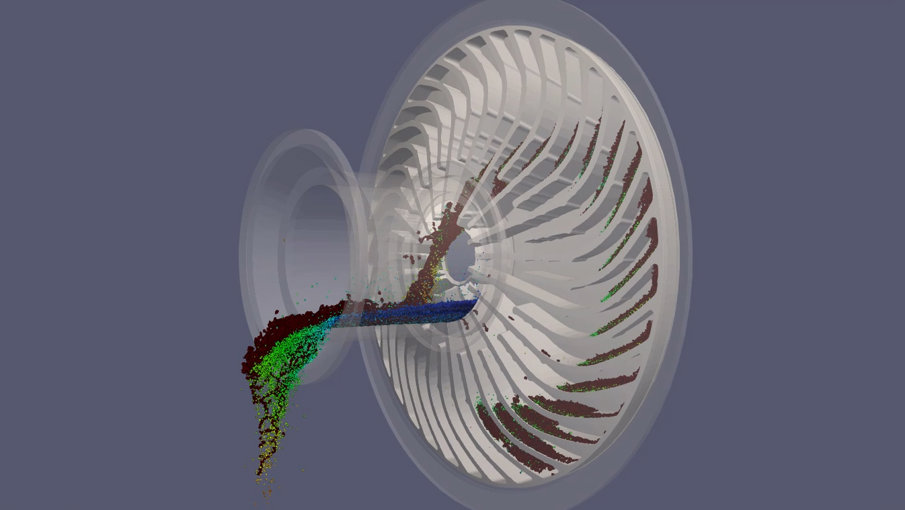

We are constantly working to optimize your mill lining design according to your targets and current conditions. Our simulation software allows us to predict the performance of the customized lining extremely accurately, which ensures that we deliver the gains we promise. With Metso, you can be sure that your mill lining is always designed according to your targets, ore and grinding process.

Read more about Mill liner wear and performance monitoring.

Mill liner wear and performance monitoring
The key to constant improvements and optimized performance is mill liner wear and performance monitoring.

Combine for better results

Our ability to combine different materials in the same mill, using each material where it performs the best, enables us to optimize your grinding process and make it more sustainable.

The lining material should be distributed in such a way that the thick portions protect the areas with high wear and the thinner portions are used on the areas with lower wear. A certain lining thickness is required to achieve the desired wear life, and the lining must also have a profile suited to the desired type of charge movement but without occupying too much volume. Moreover, a good lining design will keep a good profile throughout its service life, providing enough traction to sufficiently lift the charge.

Skega™ Life rubber
Skega™ Life rubber
Our most high performing and sustainable rubber ever. Read more about our new rubber compound with up to 25% longer wear life

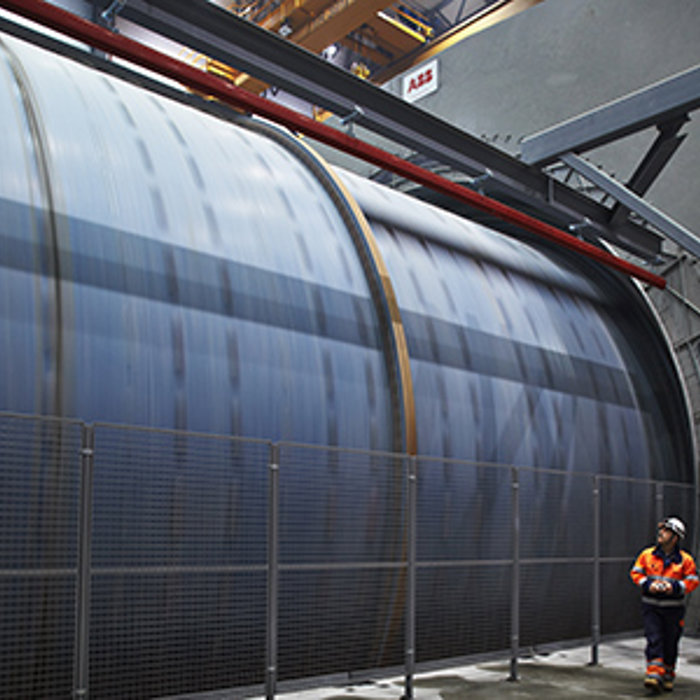

Liners for all types of mills covering all sections within a horizontal mill
Liners for all sections of various types of mills

Metso designs mill linings for optimal grinding performance. We offer fit for purpose liners for all types of mills, including SAG mills, AG mills, ball mills, rod mills, and pebble mills. Our liners are designed to fit the specific requirements of each mill, taking into account factors such as mill size, speed, charge, expected service life, and ore properties. With our integrated approach, we make sure that your different wear parts work together to help you achieve your production and sustainability goals.

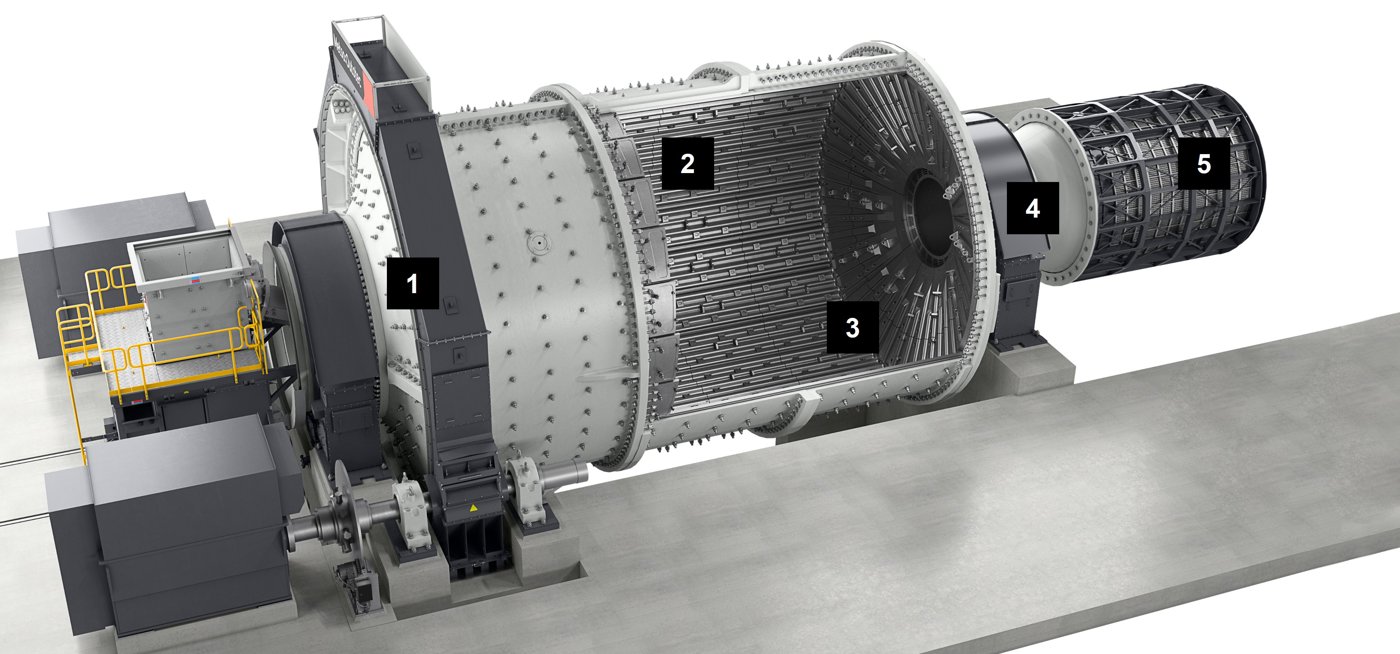

1. Head linings

Head linings

As part of a system solution, the head lining is designed with consideration to the shell lining design. All components must be in balance to minimize the number of maintenance stops.

We keep the number of individual parts to a minimum and to ensure that parts do not interfere with each other during installation. Liners that are most subject to wear are made more robust, and whenever possible these high wear parts are designed to be independently replaceable.


2. Shell linings

Shell linings

The shell lining has a major influence on grinding efficiency. It transforms the mill rotation into charge motion and both profile and spacing must be carefully selected to suit each specific mill.

When designing a shell lining, Metso considers the type of grinding, mill size and speed, maintenance schedules, safety, impact levels, efficient use of materials, and many other parameters.




3. Discharge systems

Discharge systems

Metso’s wear-resistant rubber-covered or cast dischargers come in two general designs – radial and curved. The larger the mill, the longer the distance the material must travel before being discharged into the trunnion.

A curved discharger design will initiate a flow towards the center of the mill at an earlier stage and ensure that the discharger pan is emptied and ready to be refilled during the next pass through the charge. Prompt removal of material and less backflow will allow the energy to be more efficiently utilized for grinding fresh ore. As less material is recirculated, wear life increases. In addition, increased flow can also contribute to increased throughput and decreased power consumption.




4. Trunnion linings

Trunnion linings

Metso trunnion liners are custom-made to protect your mill trunnions from internal wear. Fit is critical, and our trunnion liners can be made to almost any size or shape.

Typical design features include internal spirals or dams to control material flow, flanges for the mounting of trommel screens, the inclusion of threaded holes for jacking screws, inspection ports, etc. Metso trunnion liners are grouped into three categories; One-Piece, Replaceable Sleeve, and Bolted Wear Elements.




5. Trommel screens

Mill trommel screens

Mill trommels, whether used for sizing or scalping, play a vital role in your grinding circuit. Metso’s robust but light-weight trommel frames consist of carefully selected welded profiles that are covered in a protective layer of wear-resistant rubber or polyurethane. Adapting flanges, if required are available to suit the design of virtually any trunnion or trunnion liner interface.

There are two main types of screen panels – modular and customized. The modular trommel panel with snap-on attachment comes in a standard size of 305 x 610 mm. Installation and replacement of the snap-on screen panels is easily accomplished and results in minimal if any impact on mill availability.

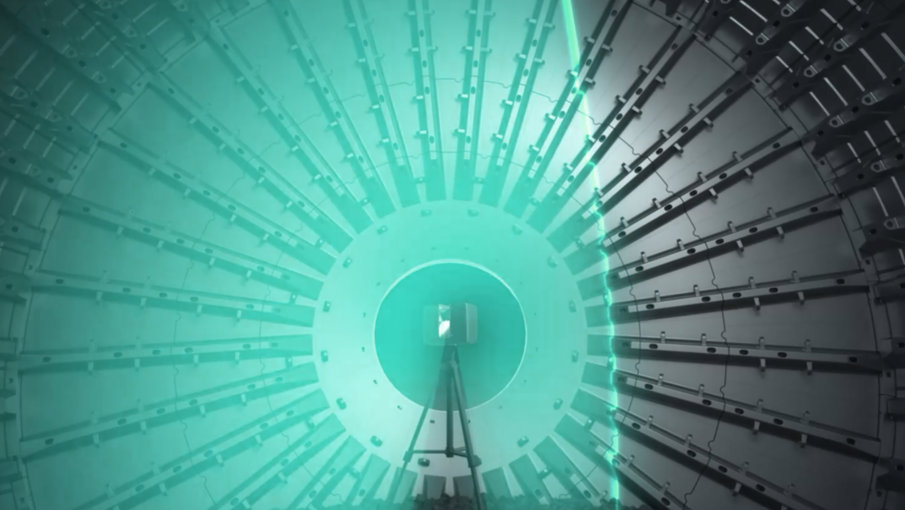

View mill lining 3D scans  in virtual reality
Experience mill linings in virtual reality
View your 3D scanned mill linings in virtual reality. Enter an efficient and safe environment for technical discussions.

More than a lining

Metso offers a full portfolio of parts, services and equipment to ensure that you get the best out of your grinding process and reach your production and sustainability goals.

More than a lining
When buying a mill lining from Metso, you get more than just a wear part. We always do a pre-study and design the lining based on your conditions and targets. Wear and performance monitoring are regularly done to better understand your grinding process and to optimize the lining accordingly. Technical support is offered, and we arrange product and process trainings as well as technical development meetings for our loyal customers.

Installation and reline
Our experienced engineers oversee the safe and timely installation of Metso-supplied parts. Our experts adhere to the most stringent safety standards and are highly trained in OEM workmanship, allowing for a high-quality installation. If necessary, Metso can also guarantee the amount of downtime needed to perform wear part changeouts. Read more on mill reline services and mill reline machines

Grinding circuit optimization
Metso process experts help in solving complex operational issues using analytical techniques, laboratory testing, and advanced control systems. Whether you need to optimize a piece of equipment, a circuit, or your entire plant, we have the tools and technology to help you make it happen. Read more on Process optimization and controls.

Life Cycle Services
Metso's pre-packaged solutions are designed to assist you in meeting your business goals, from start-up to shutdown to end-of-life. We can support you on a specific activity or over a larger scope, combining elements from our large portfolio of services with unique commercial models. Read more on Life Cycle Services.

Mill lining solutions for horizontal mills
Grinding mill services
Get the most out of your grinding circuit. Whether you are looking to minimize downtime, increase capacity, lower your cost per ton, or improve efficiency– we can support you.
Contact our experts to learn more!
