Metso Full portfolio Sala VS Series vertical sump pumps
Sala VS Series vertical sump pumps

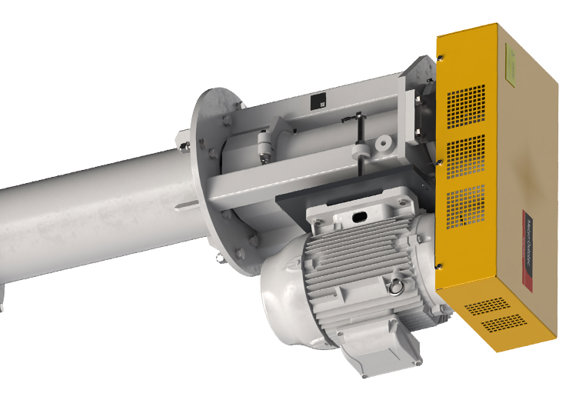

Sala VS Series Vertical Sump Pumps

Industry benchmark in efficient overflow recovery

Sala VS series vertical sump pumps are the strongest, high capacity and leading pumps preferred by the heaviest industries around the world. Known for robustness and ease of maintenance, these pumps are designed specifically for abrasive slurries.

Outstanding spillage recovery

Used globally for recovery of spillage and return of it to the process eliminating mechanical recovery.

Robust design

Cantilever design without submerged bearings or shaft seal.

Proven & most reliable

Proven for tough floor cleaning applications in mining concentrators.

Simple installation

Hang the pump in the sump by the lifting bracket provided.

Sala VS Series Vertical Sump Pumps

Metso Sala VS series vertical sump pumps are the strongest, high capacity and leading pumps preferred by the heaviest industries throughout the world. Globally used for efficient overflow recovery and its return to the process, our vertical sump pumps eliminate the need for mechanical recovery.

Developed from the old SALA sump pump, VASA G model, the Metso type VS vertical sump is the most reliable sump pump available on the market.

Sala VS vertical sump pumps

Industry's toughest, high capacity and leading vertical sump pumps

Simple installation

With small sump pumps is it possible to hang the pump in the sump by the lifting bracket provided. Larger units are normally bolted to a permanent base plate. Pump bearings are in a housing above the base plate for accessibility and protection.

All pumps can run dry intermittently. Pumps with metal pump parts can run dry for an unlimited length of time. Special designs giving extended length, with the bearings below the base plate, are available on request.

Robust design

The heavy-duty pump shaft is of cantilever design, hanging below the bearing housing. There are no submerged bearings, stuffing box or shaft seals. This design ensures minimum maintenance and eliminates the need for water flushing.

The pump shaft is mounted in grease lubricated roller bearings. Impeller clearance is maintained by external axial adjustment of the shaft/bearing assembly. Bearings have double seal protection against contamination.

High-quality parts

Standard pumps are supplied with parts in wear resistant natural rubber or High Chrome white iron alloy, with a nominal hardness of 600 BHN. Other wear part materials available include elastomers in synthetic rubbers and polyurethane and metals such as 316 stainless steel and CD4MCu. Parts in different materials are fully interchangeable and can be combined for optimum life.

Wet end

The “wet end” parts have large material sections for extra-long wear life and are designed for the toughest of applications. Single volute and generous solids passage through the pump ensure safe and clogless operation. The “wet end” assembly is suspended from a tubular column below the bearing housing.

Drive

Pumps can be supplied with a V-belt drive, motor and drive guard. The motor is mounted vertically on an adjustable motor plate fitted beside the bearing housing.

Motor size

Motor size and V-belt drive vary with the pump application. Minimum data required for an approximate pump, speed and drive motor selection are:

  • Slurry flow rate
  • Slurry density
  • Total discharge head
Versatile solution, multiple applications

Sala VS series vertical sump pump benefits your process with these typical applications:

  • Floor sumps in process plants
  • Mill scale pumping in steel work
  • Pumping of machine tool cuttings
  • Wood chips pumping
  • And many more
Sala VS Series Vertical Sump Pumps
Selection of Sala VS sump pump size and dimensions.
Selection of Sala VS sump pump size and dimensions.
{{decodeHtmlEntities(field.label)}}
{{zoomedImageIndex + 1}}/14
{{ captions[zoomedImageIndex] }}

Downloads

{{field.label}}
{{item.Title}} {{item.FileSizeKb}} {{item.FileSizeMb}}
{{ item.Title }}
Size
{{ item.FileSizeKb }}

Didn't find what you were looking for? Access all 3D arrangements for pumps

Sala VSH and Sala VSM sump pumps
Different series to meet your needs

Sala VSH and Sala VSM pumps are a combination of the classic Sala VS sump pumps and Orion Series horizontal pump wet ends.

The combination provides a major advantage to the customer: the same wet end parts are used for both horizontal slurry pumps and sump pumps, thus reducing parts inventory and simplifying maintenance.

It also enables generating a higher TDH, pump head.

Selection of Sala VSH and Sala VSM sump pump size and dimensions.
Selection of Sala VSH and Sala VSM sump pump size and dimensions.
