Ring gears: Is your spare parts strategy leaving you exposed?

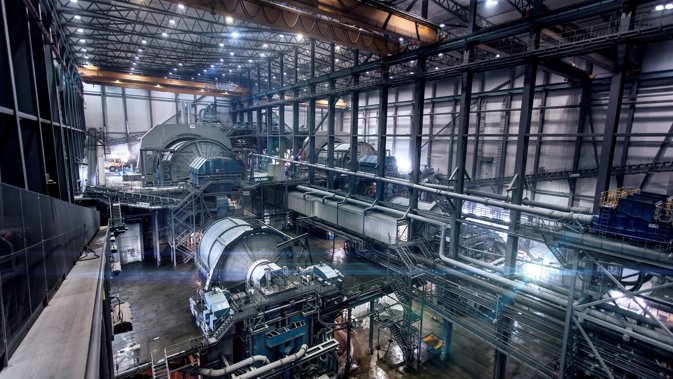

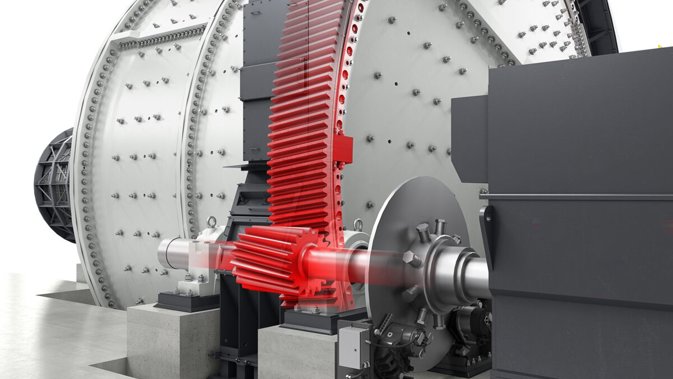

In the world of mineral processing, grinding mills are often the backbone of production. And at the heart of many of these mills lies a critical component: the ring gear. Much like the drivetrain of a car, the ring gear plays a vital role in transmitting torque from the motor to rotate the mill, enabling the grinding process that liberates valuable minerals used in everyday life.

But what happens if the gear fails? The consequences can be severe, resulting in extended downtime, lost revenue, and a scramble to source replacement components. That’s why having a well-thought-out maintenance and spare parts strategy is essential to de-risk operations.

When developing a spares strategy, collaboration with the original equipment manufacturer (OEM) provides an opportunity to leverage their specialised engineering expertise and comprehensive lifecycle support knowledge to deliver a comprehensive solution that is often difficult for alternative suppliers to achieve.

Why ring gears?

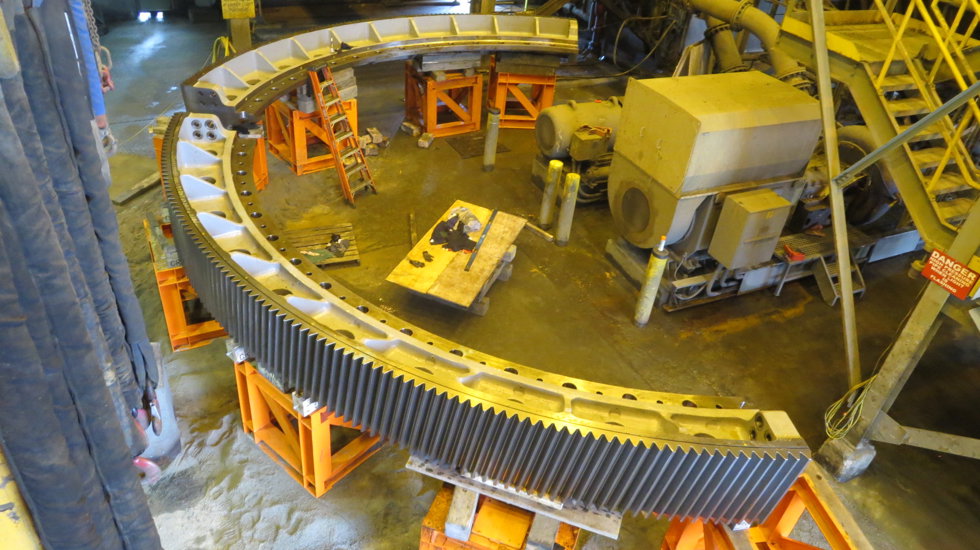

Ring gears endure immense stress, torque, and environmental exposure during operation. Gear failure can halt production for weeks or months. Unlike smaller components, ring gears are not easily exchanged, and require significant planning, technical expertise, lifting capacity, and downtime to replace.

A well-designed, manufactured, installed and maintained gear set provides:

• Consistent mill rotation
• Efficient power transmission
• Reduced risk of catastrophic failure
• Extended life of associated components
• Longevity for the life of the grinding mill

Comprehensive maintenance strategies are the first line of defence, however, when a mill is production critical, it is often not enough to rely on maintenance tactics to mitigate risk alone. A robust ring gear (and pinion) spare component strategy is essential.

Spare strategies: What are your options?

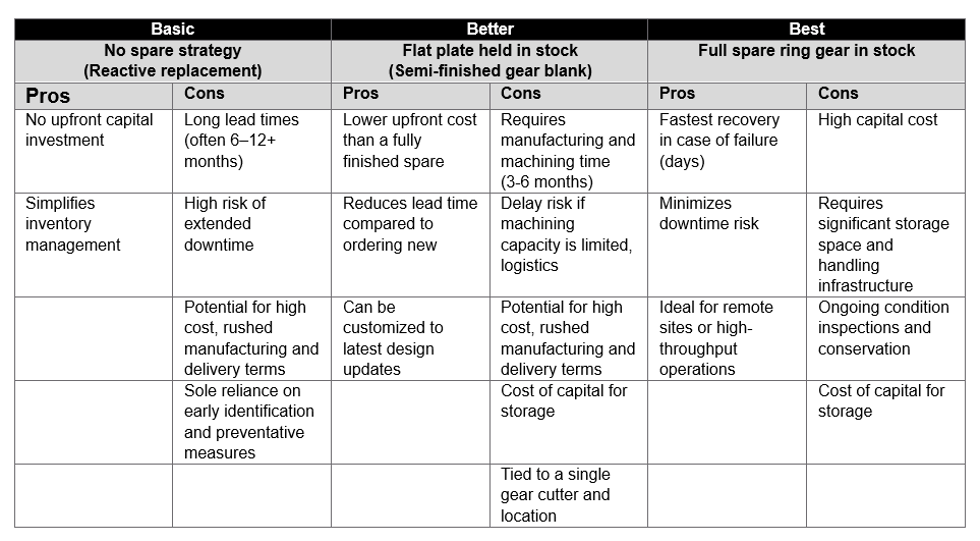

There are three common approaches to managing ring gear spares:

Critical considerations for ring gear reliability

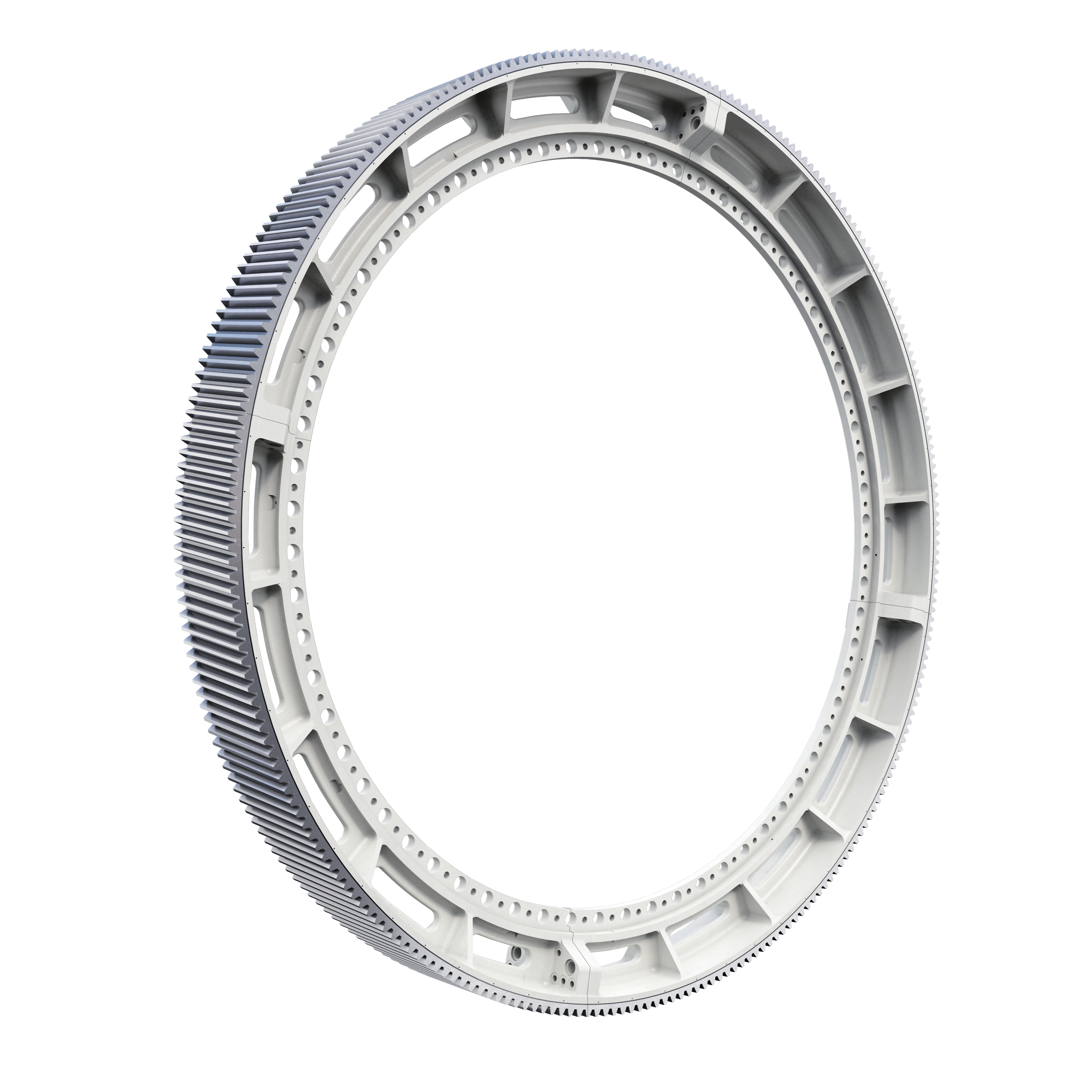

Ring gears are engineered and produced to precise specifications, which is essential for compatibility, optimal performance, and extended component service life. With numerous gear manufacturers in the market, application expertise is paramount and should never be underestimated.

The minerals processing industry currently adheres to AGMA 6014-B15 (imperial) and 6114-B15 (metric) standards to rate horizontal grinding mill gears and pinions. However, AGMA standards serve primarily as a guideline for gear design. The selection of service factors and the application of these standards play the most significant roles in determining the final gear rating and component longevity, pitting resistance, and the bending strength of open or semi-enclosed gearing.

These key gear design elements are developed over years of practical experience and remain the proprietary domain of the OEM. OEM expertise can be the defining factor in the reliability of the entire gear set.

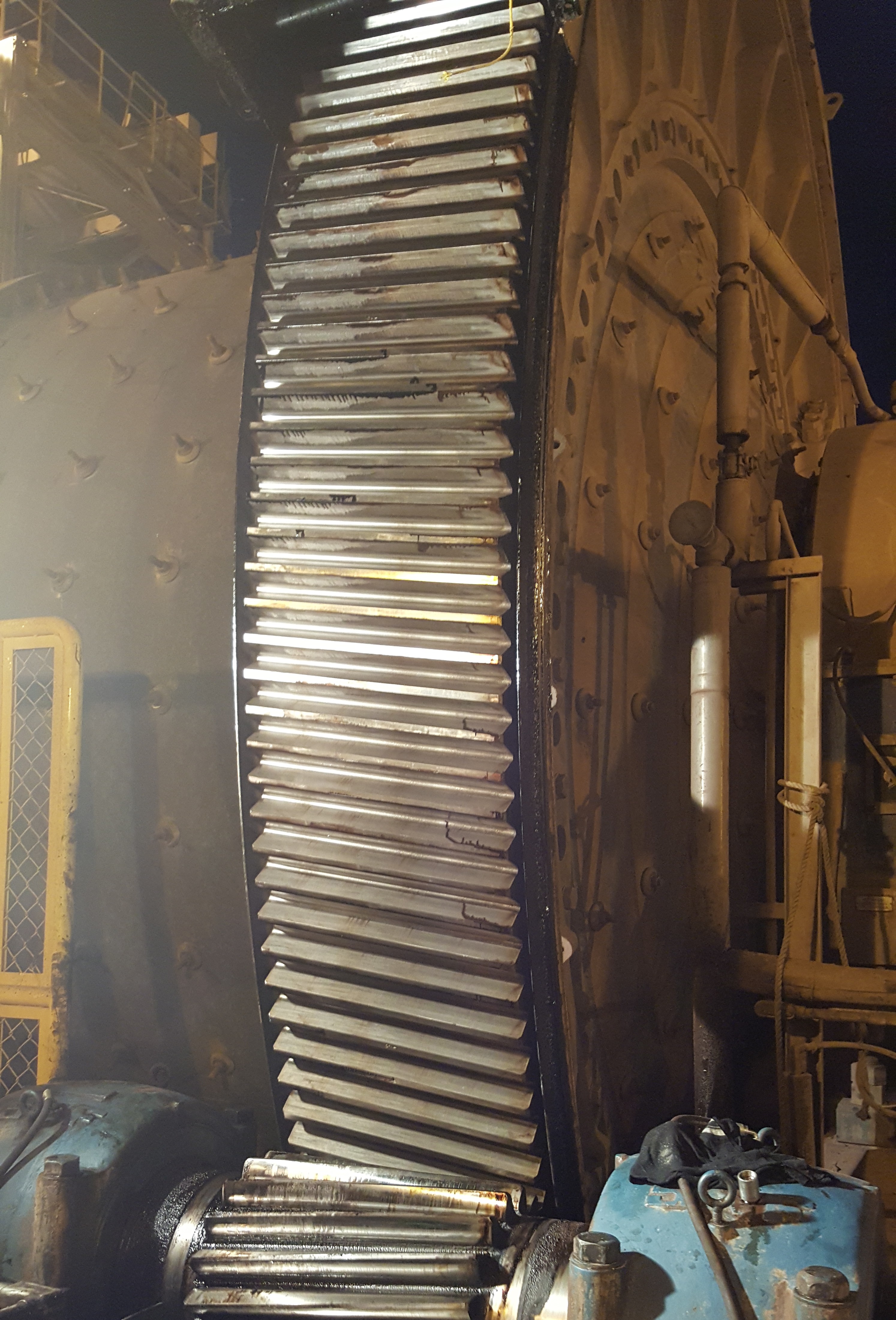

There are many reasons why a gear may fail, such as insufficient lubrication, misalignment, contamination, progressive pitting, and various other adverse conditions. Using a lower-rated gear can exacerbate the situation, ultimately resulting in premature failure. Choosing non-OEM or reverse-engineered parts can introduce additional inherent operating risks, including compatibility issues, accelerated wear, and even catastrophic failure; risks that may far outweigh any initial cost savings.

Reliability is a strategy, not a coincidence

Effective ring gear spare part management is essential to optimize operations, whether managing a single mill or coordinating a fleet across multiple locations. Selecting the appropriate ring gear and pinion spare part solution should align with key operational priorities, such as cost efficiency, streamlined installation and risk mitigation. When combined with thorough maintenance protocols, this approach supports maximum equipment availability and long-term reliability. Investing in preparedness consistently proves more economical than dealing with unforeseen downtime. Ask yourself: “How resilient is my ring gear maintenance and spare parts strategy?”
