Metso Full portfolio Nordwheeler™ NW Rapid™ portable screens
Nordwheeler™ portable screens are mounted on wheeled chassis for fast delivery and easy setup in an aggregates quarry. You can move a portable plant to a new location within 1-2 years, and no heavy concrete foundations are needed. In many countries it is easier to get a crushing permit for a portable plant.


Based on decades of expertise in crushing and screening.

Easily transportable

Most components are huck-bolted. Suitable for most road regulations.

Energy efficiency

Electric drive with low energy costs.


Robust design and high-quality components. Global service network

More screening capacity to portable plants

Pre-designed for fast delivery and quick set-up

NW Rapid™ portable solutions are made to deliver a faster return on investment.

This is possible because of the pre-designed crushing and screening stations, ready-made plant layouts and flowsheets, as well as the machines that are designed for quick set up time.

They are mounted on wheels to be re-located by towing with a standard truck in the site - also called pit portable - or as road transport between sites. The machines can also be transported in a shipping container.

Portable plants are ideal for 1-2 years of crushing and screening operations in one location. In many cases, a crushing permit is easier to get for a portable plant compared to a stationary plant.

Process control and remote use as a standard

Process control is a standard feature in NW Rapid portable solutions. It optimizes, monitors and controls the crushing stations. The IC control system also includes a Remote User Interface (RUI) with no extra license cost. You can control the entire process with a PC from the control room. No additional programming or software is needed as the RUI is displayed on a browser.

A remote process control increases the safety of the employees since the process can be adjusted from the control room without stopping it. Automatic process control increases productivity and preventive maintenance, while at the same time improves the quality and consistency of the end product.

Powered by electricity

NW Rapid machines are all electric. This makes the operation more sustainable, especially when using renewable energy source. Electrically operated units are easy to maintain, and their operational costs are significantly lower than diesel-driven machines. In addition, when grid is not available, servicing a single large diesel generator on the site is less demanding than service multiple diesel engines in each unit.

NW2060S portable screen

NW2060S portable screener has an inclined CVB screen with two options: Coarse primary screening and fine screening. The screening area is 12m2 (14yd2). The coarse screen has 3 decks while the fine screen has 4 decks, resulting to four or five precise products. NW2060S has a 600-700 tonnes per hour capacity and can be combined with any NW Rapid crushing station for precise separation.

Optional features, such as hydraulically adjustable support legs and screen lifting, allow for a quick and easy set-up for operation.

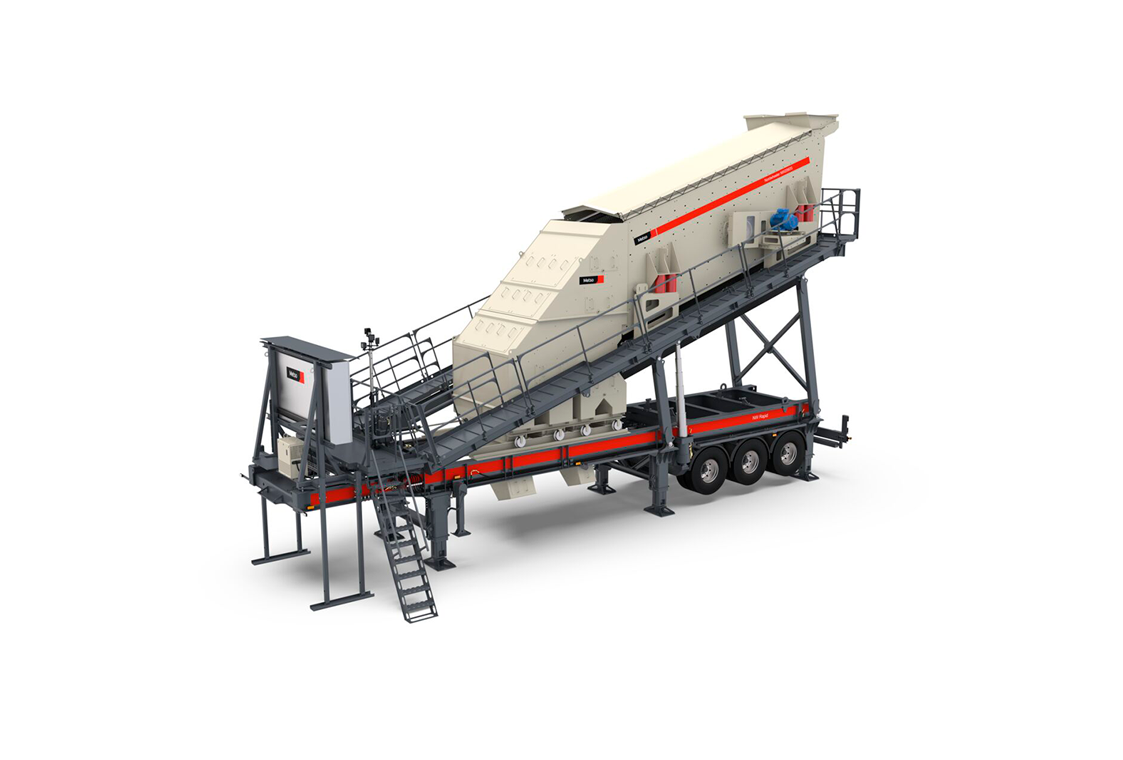

NW2060S portable screen
NW1855S portable screen

NW1855S portable screening plant is equipped with a large 10 m2 (12 yd2) four-deck dual-slope vibrating screen, dividing screen chute, electric control center, and proper maintenance platforms into the same advanced chassis. In result, this brings excellent screening performance.

Optional features such as hydraulically adjustable support legs, screen lifting and onboard screen fines conveyor allow for a quick and easy set-up for operation.

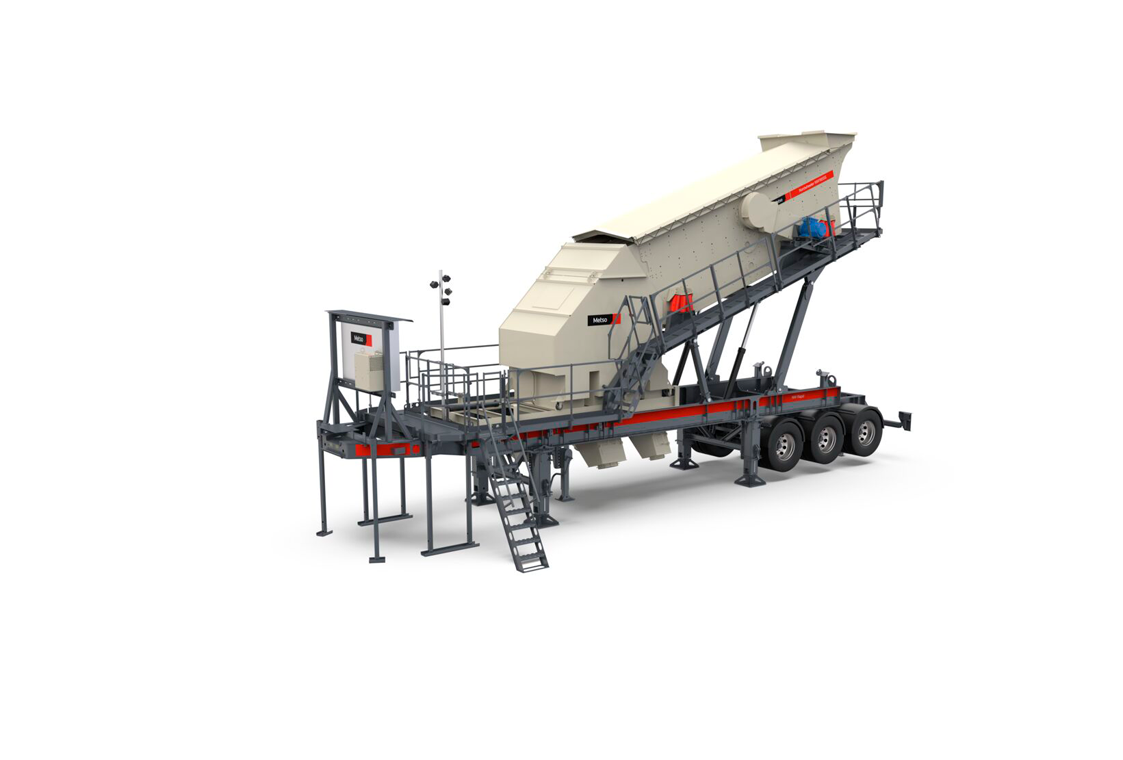

NW1855S portable screen

Technical specification

Check the video
Select your NW Rapid™ solution.
Not sure which Nordwheeler™ portable plant to choose?
Try out our crushers and screens recommender!
Get Crushing and Screening Handbook
