Conveyor belt secondary cleaners

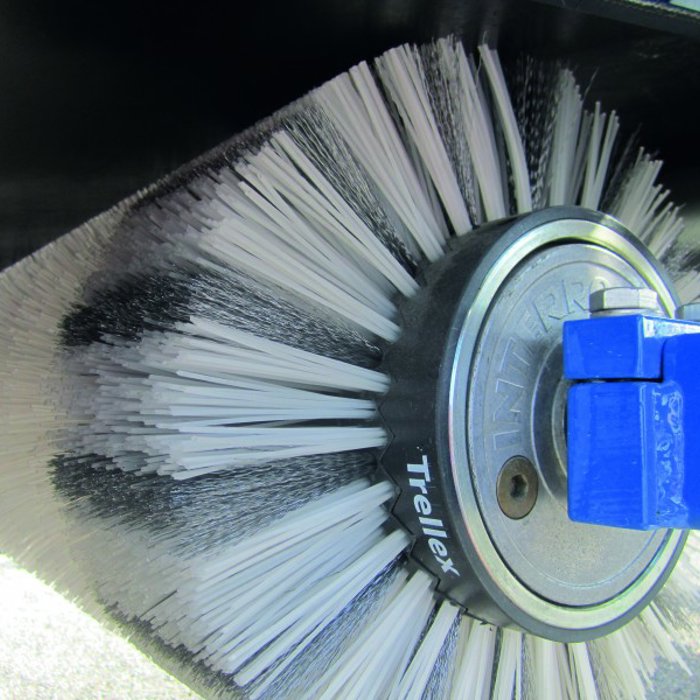

Trellex ABC-BRUSH is ideal for cleaning cleated belts, helping maintain a clean surface without damaging the belt’s profile. It is also a good complement to cleaners on standard smooth belts where fine, dry materials are being conveyed.

Material properties

Our brushes are made of high-quality, hardwearing nylon. We also offer brushes made with a combination of nylon and steel for use in the glass recycling industry. A central core of lightweight plastic (polypropylene) makes installation and section replacements easy.

Special features

The brush tube consists of 150 mm long modules. This saves on replacement parts, as well as giving complete size flexibility and guaranteeing availability. For a larger belt, just add more sections. The belt brush is driven by a fully encapsulated drum motor. This is not only a space-efficient alternative to an external motor but also highly reliable since no dust or dirt can enter and interfere with its mechanical moving parts.

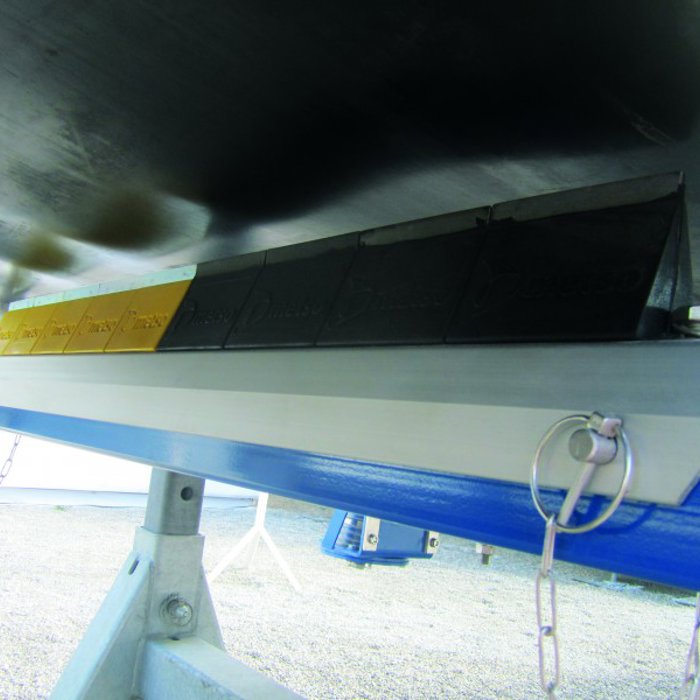

Trellex ABC-T-HMS RU secondary cleaner is designed especially for abrasive applications in mining operations and aggregates production.

Material properties

Thanks to a super-fine tungsten carbide blade, this cleaner provides the very best performance when handling abrasive materials. It is completely invulnerable to damage from coarse or sharp material, and therefore offers a very long lifetime. The blade is molded into soft rubber so each cleaner section can move flexibly and work independently from others in the row.

Special features

With a Trellex ABC-T-HMS RU, your conveyor belt is safe. The cleaner sits at 90 degrees to the belt surface, which dramatically reduces – practically eliminates - the risk of damaging the belt. Additionally, if the belt surface is slightly uneven, the soft rubber construction yields naturally to prevent damage, either to the belt or the cleaner itself. The cleaner can be installed both inside and outside the chute.

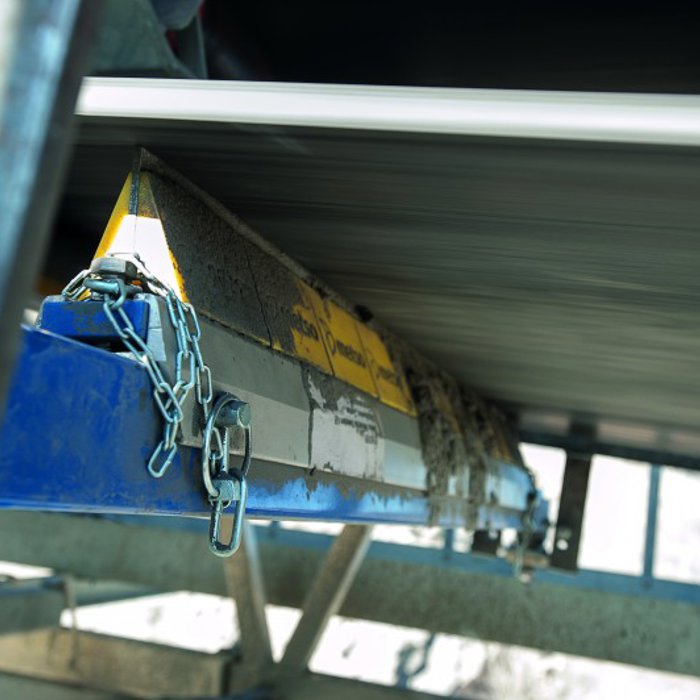

Trellex ABC-T-HMS PU secondary cleaner is suitable especially for abrasive applications in mining and aggregates industries.

Material properties

Thanks to a super-fine tungsten carbide blade, this cleaner provides the very best performance when handling abrasive materials. It is completely invulnerable to damage from coarse or sharp material, and therefore offers a very long lifetime.

Special features

The blade is moulded into hard PU, which helps it maintain a precise 90-degree angle to the belt surface. This gives a high degree of efficiency, but please note that it should not be used on a mechanically spliced or heavily worn belt. The cleaner can be installed both inside and outside the chute.

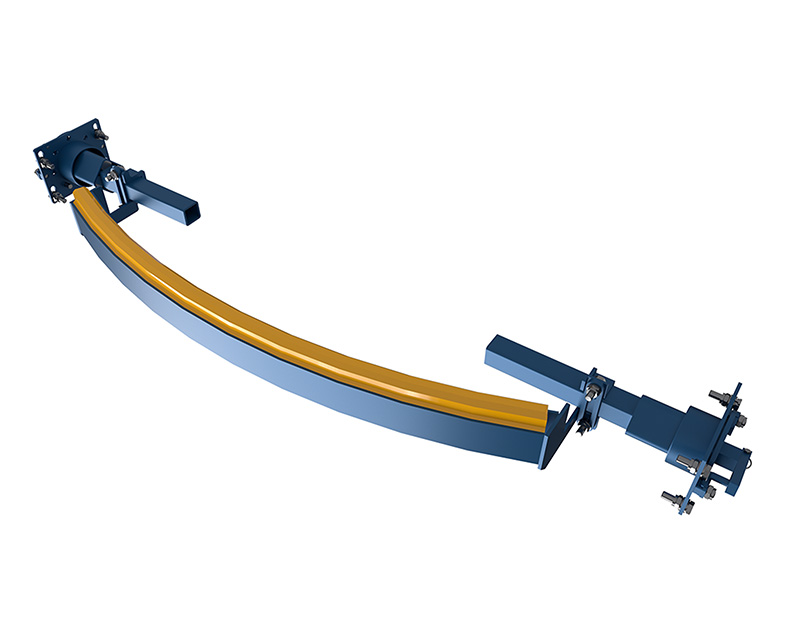

The U-type Trellex ABC U-HMS secondary cleaner efficiently removes water and sticky carryback materials and protects the belt in most applications. The parabolic form ensures that the blade has constant contact with the center of the belt, erasing the traces of even most difficult unwanted materials after the primary cleaner. To achieve the best result, it is necessary to install both primary and secondary cleaners.

Material properties
The blade has tungsten carbide inserts coupled with polyurethane backings. The tungsten carbide inserts scrape the sticking material off the belt, while the cleaning is finished by the PU backings removing the wet materials. The ABC U-HMS cleaner is designed for dirty environments and it is installed anywhere down on the conveyor line after the head pulley.

Special features
The tungsten carbide inserts of the blade are overlapping, leaving no gap between the inserts where the material can pass. The inserts are embedded in polyurethane, giving the blade a smooth start, and a dual-hardness function to get the right tension against the belt, and to protect the belt instead of wearing it. A wear indicator placed outside the chute indicates in a safe way when it is the time to change the blades.

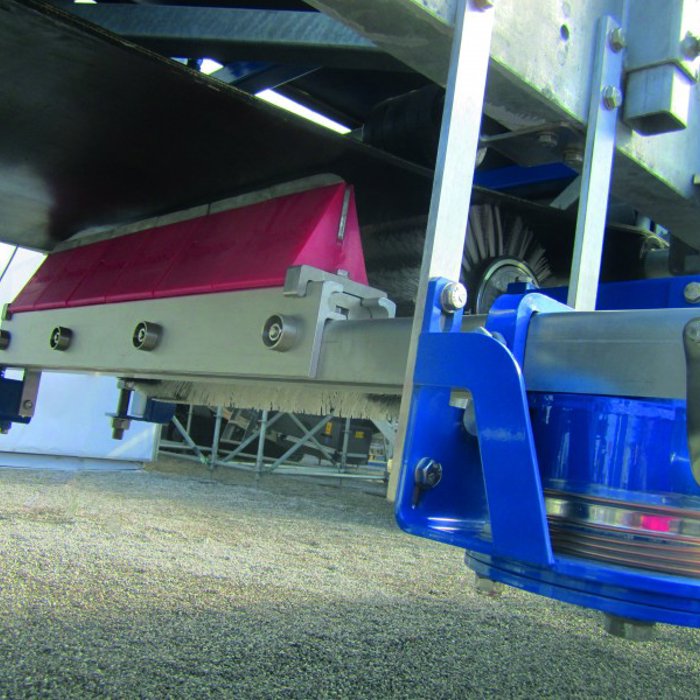

Trellex ABC-T-HMS-HD-L PU secondary cleaner is made for use in the toughest mining applications.

Material properties

Made with extra-fine tungsten carbide moulded into polyurethane, this cleaner has the prerequisites to give you the longest lifetime of any in our portfolio.

The generous volume of tungsten carbide used (up to 40% more than competing models) further adds to the product lifetime.

Special features

The cleaner comes in segments, which means you can get the exact width to match your belt, as well as other advantages such as costeffective single-segment replacements.

A stainless steel slidable cassette makes it quick and safe to replace blades, and a highly advanced tensioner ensures reliable performance, even under
extreme conditions.
