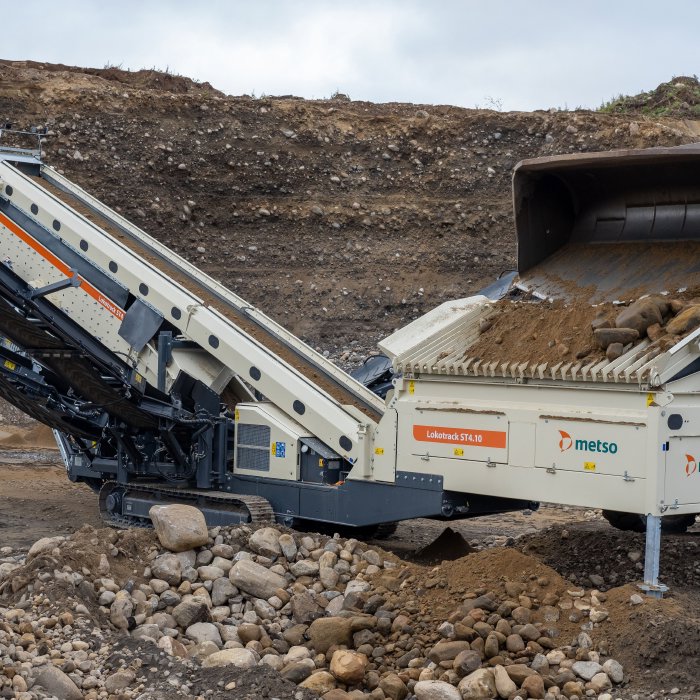

Lokotrack® ST4.10™ & ST4.10E™ mobile screen

High capacity mobile screening for closed circuit crushing

Lokotrack® ST4.10™ & ST4.10E™ mobile screen is ideal for large-scale aggregates production. Its 5' x 20' triple deck screen produces four end products. The wide feeding box and adjustable discharge height on 10 m conveyors makes it a powerful aggregate screen in closed circuit crushing processes.

High capacity screening

Large-scale 5'x20' 3 deck screen

Closed circuit

Ideal for closed circuit crushing process with other Lokotrack units

Power grid or diesel fuel

Change with a flick of a switch.

Calculate savings

Track-mounted unit

On-site mobility and easy to transport between sites as a single unit.

Large-scale Lokotrack® ST4.10™ & ST4.10E™ mobile screen for tough aggregate crushing processes

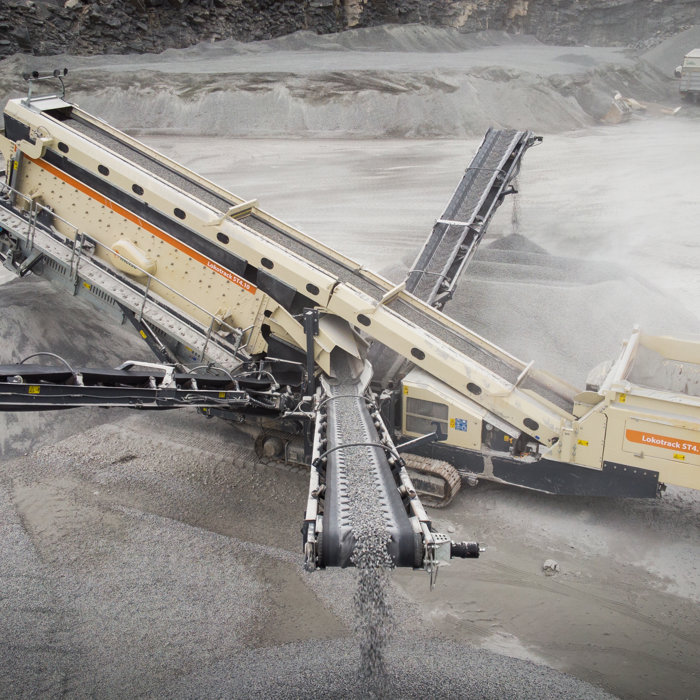

Lokotrack® ST4.10™ & ST4.10E™ mobile screen has an extensive 5' x 20' / 9 m² screening area. It is especially designed for large-scale aggregate screening and it produces four end products.

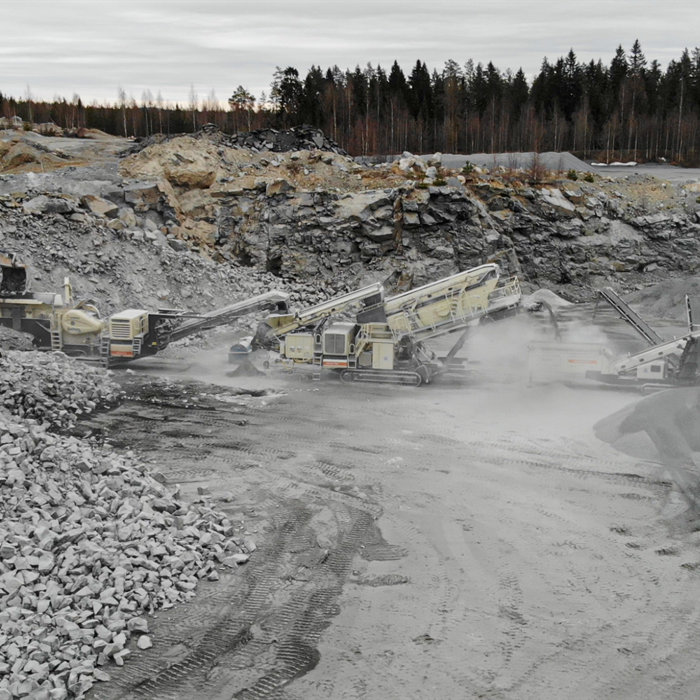

Close circuit with extended feed box

The wide feed box and 10 m (33’) side conveyors with adjustable angles enable closed circuit production with Lokotrack mobile crushing plants or other ST mobile screens. The wide feed box also makes loading with a wheel loader easy when using ST4.10 as a stand-alone unit.

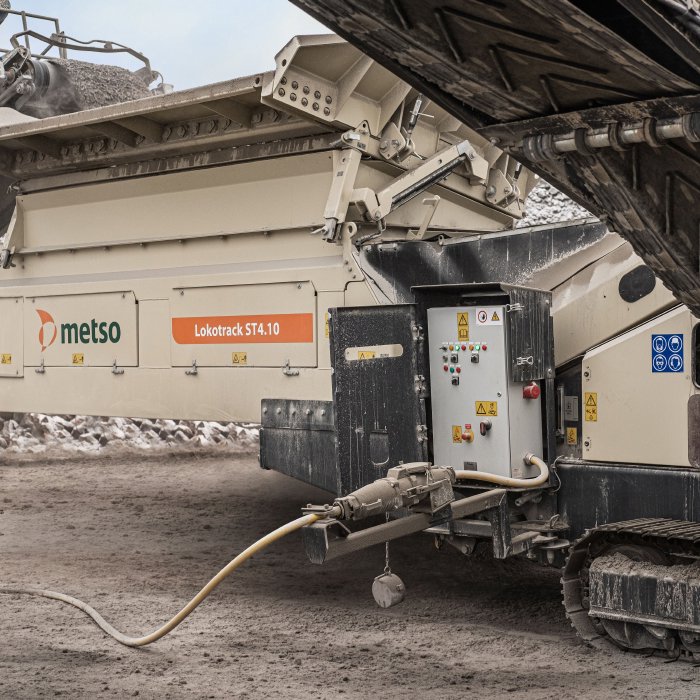

Hybrid e-Power for electric operation

The Lokotrack® ST4.10E™ is equipped with e-Power that gives you twice the choice for your business. Plug it to the grid for quiet, emission-free and economical scalping in the cities, and enjoy the flexibility of modern low-emission and low noise diesel engine out in the wild.

Learn more about Lokotrack® e-Power hybrid crushers and screens

Easy to set up and transport

Despite its large size Lokotrack® ST4.10™ & ST4.10E™ mobile screener is fast and easy to set-up and can be transported between sites as a single unit on a low bed truck.

Process control for safety of your screen

An optional Metso IC™ process control system offers a single-button start-up and the possibility to interlock the Lokotrack® ST4.10™ & ST4.10E™ with other equipment for an overall view on the process with Metso Metrics remote monitoring and data visualization service.

Customized or tailor-made, we got it

As all Lokotracks, ST4.10 & ST4.10E mobile aggregate screener is highly customizable to fit for different needs with wide range of options, and it can be modified if the production requirements change. As a leading company of mobile crushing and screening technology Metso also offers tailor-made equipment that fit to your special production needs.

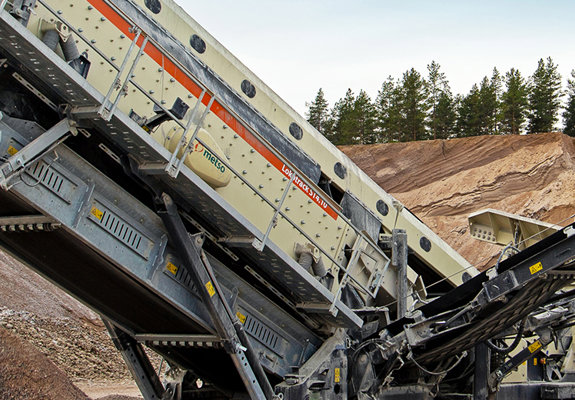

Easy maintenance with side tensioned meshes

The top and middle deck screen mesh are side tensioned and conveyors are lifted hydraulically. This means that the screening media can be changed by a single person.

Global network of experts and parts

ST4.10™ & ST4.10E™ aggregate screen’s spare parts, wear parts, and service are available through Metso worldwide network.

Optimum crushing results

The Metso IC™ process control system optimizes crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack® mobile crushers in the same crushing process can be connected to the Metso IC™ system. In addition, the entire process can be conveniently monitored and controlled from the excavator's cab using the Metso Remote IC application for remote process control.

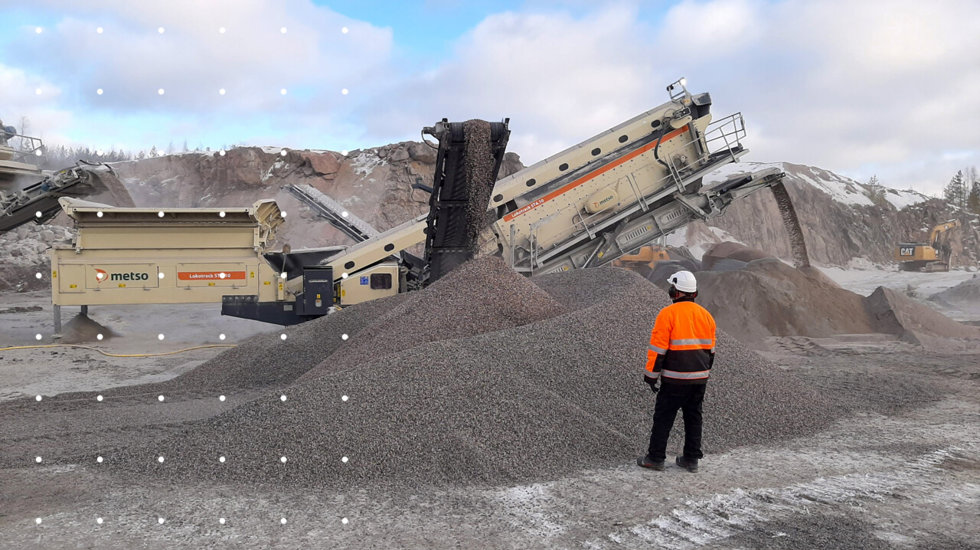

Check the video
