The ultimate guide to flotation inspections

Guillermo Bermudez
Guillermo Bermudez
Product Director, Flotation
This blog will guide you through the potential flotation issues and their causes as well as the impact in terms of monetary or time value. We also share tips on what to look for, the types of inspection methods and mitigating options available when identifying flotation issues early which will contribute to the overall success and sustainability of your operations.

Inspections go beyond mere compliance and have the potential to yield significant cost and time savings in the long term. Repairing equipment is generally far less expensive than replacing it altogether. By conducting regular inspections, major repairs can be prevented, and the worst-case scenario of equipment failure can be avoided.

Potential flotation issues and their causes

Flotation is a widely used process in the mining industry to separate valuable minerals from gangue (unwanted material). However, several flotation issues can arise during this process, affecting its efficiency and effectiveness. Some potential flotation issues in mining include:

  1. Poor mineral liberation: Insufficient grinding or crushing of the ore can result in poor liberation of valuable minerals from the gangue. Inadequate liberation hinders the effectiveness of flotation, as the minerals may remain trapped within the gangue particles, leading to low recovery rates.

  2. Froth stability: The stability of the froth layer formed on top of the flotation cell is crucial for successful separation. Factors such as the presence of excessive froth or lack of froth can impact the recovery of minerals. Excessive froth can lead to the entrainment of invaluable minerals or gangue as a result of increased water recovery, while a weak or unstable froth can result in lower recovery rates.

  3. Particle size effects: Flotation performance can be affected by the particle size distribution of the ore. Fine particles tend to exhibit poor flotation response due to decreased collision efficiency and increased detachment from air bubbles. Similarly, very coarse particles may not attach to bubbles effectively, leading to reduced recovery.

  4. Water quality and chemistry: The composition of water used in flotation can significantly impact the process. High concentrations of impurities such as salts, heavy metals, or organic compounds can interfere with the interactions between minerals and bubbles, affecting the flotation efficiency. Additionally, pH, temperature, and dissolved oxygen levels can influence the performance of the process.

  5. Flotation reagent issues: Flotation relies on the addition of various reagents, including collectors, frothers, and modifiers, to facilitate the separation process. However, selecting the appropriate reagents and their dosage is critical. Issues can arise due to improper reagent selection, inadequate dosage, or variations in the quality of reagents, leading to reduced recovery or selectivity.

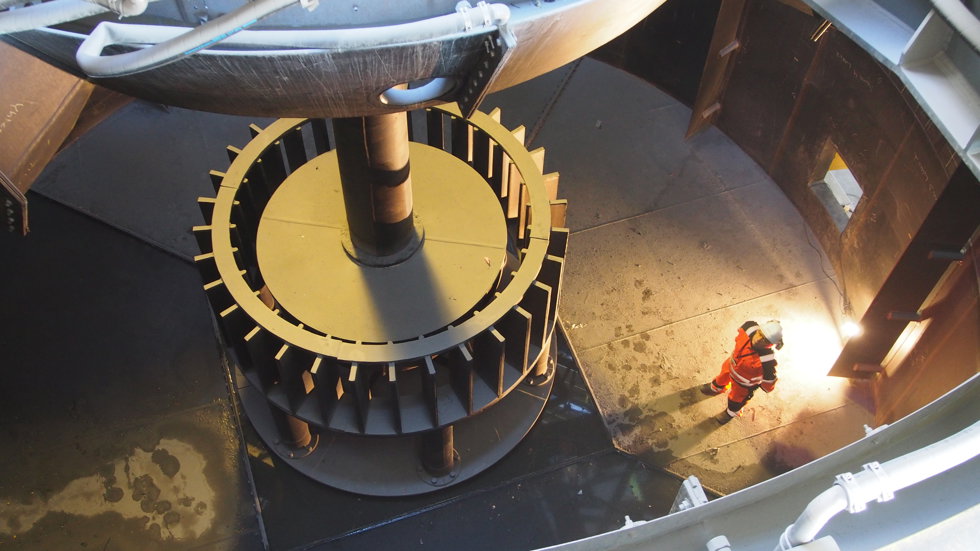

  6. Equipment problems: Flotation equipment, such as flotation cells or agitators, can encounter mechanical issues that affect the flotation process. Problems such as air leakage, improper agitation, or insufficient mixing can result in reduced recovery rates or decreased grade of the concentrate.

  7. Mineralogical variations: Variations in mineralogical characteristics within a deposit can pose flotation challenges. Different minerals may have varying flotation behaviors, and the presence of certain minerals (e.g., clay minerals, talc) can interfere with the flotation of valuable minerals, reducing their recovery.

It is important to note that these issues can often be interrelated and complex, requiring a comprehensive understanding of the ore and the flotation process to effectively address them. Experienced metallurgists and process engineers play a crucial role in troubleshooting and optimizing flotation operations.

Why do flotation issues go unnoticed?

Several factors could play a role:

  1. Lack of real-time monitoring: Flotation processes often lack comprehensive real-time monitoring systems that can provide immediate feedback on performance. Operators may rely on periodic sampling and laboratory analysis, which may not capture transient or short-lived issues.

  2. Complex interactions: Flotation is influenced by numerous variables, and identifying the exact cause of an issue can be challenging. It requires a deep understanding of the process and the ability to differentiate between various factors contributing to poor performance.

  3. Gradual decline in performance: Flotation issues may develop gradually over time, making them less noticeable in the short term. Decreased recovery or increased reagent consumption may not be immediately attributed to flotation problems, especially if they occur over an extended period.

  4. Suboptimal data analysis: Even when data is available, it may not be effectively analyzed or interpreted to detect underlying flotation issues. A lack of expertise or analytical tools can hinder the identification of problematic trends or patterns.

To address these challenges, mining companies are increasingly adopting advanced process control systems, automated monitoring technologies, and data analytics to improve flotation performance and detect issues earlier. These technologies enable real-time monitoring, predictive analytics, and proactive interventions to optimize flotation processes and minimize disruptions.


Quantifying flotation issues

Flotation issues in mining can certainly be quantified in terms of monetary value or time value. The impact of flotation problems can have significant financial consequences for mining operations. Here are a few ways flotation issues can be assessed in terms of their monetary or time value:

  1. Decreased mineral recovery: Flotation problems can lead to reduced mineral recovery rates, meaning that valuable minerals are not effectively extracted from the ore. This can result in lower overall production and revenue for the mining operation. The monetary value of the lost mineral recovery can be calculated based on the market price of the minerals.

  2. Increased reagent consumption: Flotation issues may require additional reagents or higher dosages to compensate for the inefficiencies or poor performance. Reagents can be costly, and increased consumption adds to the operating expenses of the mining operation.

  3. Processing delays and downtime: Flotation issues can cause process disruptions, leading to delays in ore processing and downtime of the flotation circuit. This downtime directly translates into lost production and revenue. The value of the lost production can be estimated by multiplying the average daily production rate by the market price of the minerals.

  4. Increased operational costs: Flotation problems often necessitate additional efforts, such as troubleshooting, process adjustments, or equipment maintenance. These activities require additional labor, resources, and time. The costs associated with these activities can be quantified and accounted for.

  5. Impact on downstream processes: Flotation issues can have ripple effects on downstream processes, such as grinding, leaching, or smelting. If the flotation process does not produce the desired concentrate quality, it can negatively affect the efficiency and performance of subsequent processing steps. This can result in additional costs or losses throughout the entire mineral processing chain.

  6. Overall process efficiency: Flotation problems can reduce the overall efficiency of the mineral processing plant. Inefficient flotation processes may require higher energy consumption or result in increased waste generation, both of which can have cost implications.

Quantifying the exact monetary or time value of flotation issues requires careful analysis, considering factors such as production rates, market prices, operational costs, and the specific impact on the mining operation. Mining companies often conduct detailed cost-benefit analyses to assess the financial impact of flotation issues and prioritize investments in process optimization or equipment upgrades to mitigate these problems.

What issues do you need to be looking for?

When monitoring flotation processes for potential issues, there are several key factors and indicators that mine operators can look for. Here are some aspects to consider:

  1. Recovery rates: Keep an eye on the overall recovery rates of valuable minerals from the ore. A decline in recovery compared to expected or historical values can indicate a flotation problem. It's essential to compare the actual recovery rates against the target or design specifications.

  2. Concentrate grade: Examine the grade or quality of the flotation concentrate produced. If the concentrate contains lower concentrations of desired minerals or higher levels of impurities, it suggests potential flotation issues. Deviations from the target concentrate grade should be investigated.

  3. Froth characteristics: Observe the behavior and characteristics of the froth during the flotation process. The froth should be stable, with good froth depth, consistency, and texture. Excessive froth collapse, low froth stability, or issues with froth transportation can indicate problems with the flotation circuit.

  4. Froth color and appearance: Changes in froth color or appearance can provide clues about potential issues. For instance, unusual coloration, excessive entrainment of gangue or unwanted minerals, or the presence of oil or contaminants in the froth can indicate problems with reagent dosing, mineralogy, or other factors.

  5. Froth and pulp level control: Ensure proper control and stability of froth and pulp levels within the flotation cells. Fluctuations or deviations in these levels can impact flotation performance and indicate issues with air or pulp flow, froth crowding, or agitation.

  6. Reagent consumption: Monitor the consumption rates of flotation reagents, such as collectors, frothers, and modifiers. Unexpected increases in reagent consumption or significant deviations from
    the expected dosage can signal issues with the flotation process, mineralogy, or reagent performance.

  7. Equipment performance: Regularly assess the performance and condition of flotation equipment, including the flotation cells, agitators, and related components. Look for signs of mechanical problems, excessive wear, or improper operation that could affect flotation efficiency.

  8. Process stability and variability: Analyze the stability and consistency of the flotation process over time. Excessive process variability, frequent fluctuations in performance, or inconsistent results can indicate underlying issues that need to be addressed.

  9. Operational parameters: Pay attention to critical operating parameters, such as pH, particle size distribution, reagent dosing rates, air flow rates, and flotation residence times. Any deviations from optimal or target values can impact flotation performance and indicate potential issues.

  10. Data analysis and trends: Regularly review and analyze historical data, trends, and performance indicators to identify patterns or deviations from expected behavior. Look for recurring issues or gradual declines in flotation performance that may require attention.

By actively monitoring these factors and indicators, mine operators can detect potential flotation issues early on and take proactive measures to address them, optimizing the overall performance of the flotation process.

Choosing the correct flotation inspection methods

Mine sites can conduct various types of flotation inspections themselves to assess the performance and condition of their flotation circuits. Here are some common inspections that mine sites can perform:

  • Visual inspections
  • Sampling and laboratory analysis
  • Process data analysis
  • Froth sampling
  • Reagent assessment
  • Equipment performance checks
  • Process audits

By conducting these inspections and assessments, mine sites can proactively identify flotation issues, optimize process performance, and implement appropriate corrective measures. It's important to note that for more complex issues or in-depth analysis, mine sites may also seek the assistance of external experts or consultants.

What mitigating options are available when identifying flotation issues early?

Identifying flotation issues early allows mine sites to take proactive measures to address the problems and optimize their flotation processes. Here are some options available for fixing, modernizing, or upgrading flotation systems:

  1. Process optimization: Mine sites can conduct process optimization studies to identify the root causes of flotation issues and develop strategies for improving performance. This may involve adjusting operating parameters, optimizing reagent dosages, modifying circuit configurations, or implementing advanced process control strategies. Process optimization aims to enhance flotation efficiency, maximize mineral recovery, and improve concentrate quality.

Read more about the flotation process assessment service here>>


  1. Equipment upgrades: Upgrading flotation equipment can often improve performance and address specific issues. Mine sites can consider replacing outdated or inefficient flotation cells with newer technologies that offer enhanced mixing, improved froth handling, or better control of operating variables. Upgrades may also involve retrofitting existing cells with advanced instrumentation and automation systems to enhance monitoring and control capabilities.

Read more about flotation modernizations here>>


  1. Reagent optimization: Mine sites can explore reagent optimization strategies to address flotation issues. This may involve evaluating alternative or specialty reagents, adjusting reagent dosages, optimizing the sequence of reagent additions, or modifying the conditioning process. Reagent optimization aims to improve selectivity, minimize unwanted froth characteristics, and optimize the overall flotation chemistry.

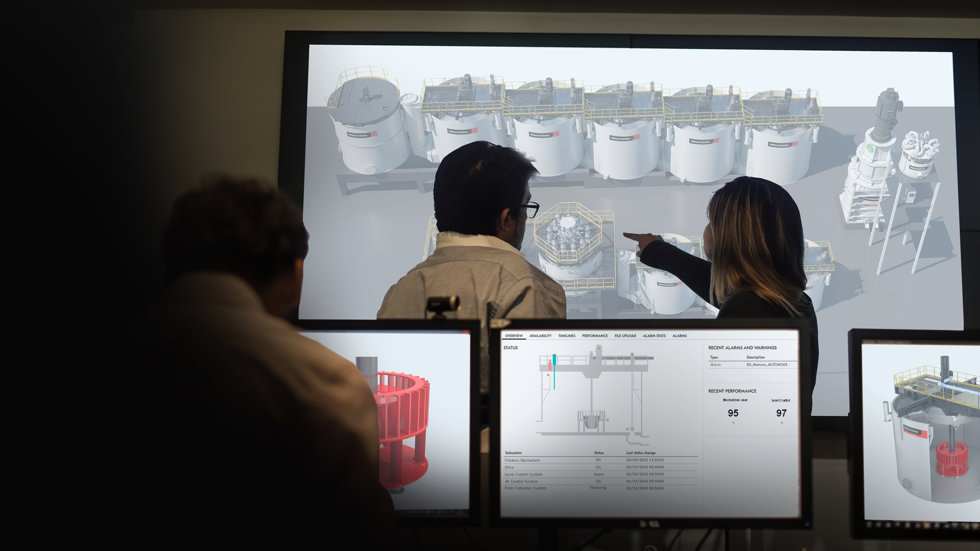

  2. Advanced monitoring and control systems: Implementing advanced monitoring and control systems can provide real-time insights into flotation performance and enable proactive interventions. This includes using online analyzers, automated sampling systems, and data analytics tools to monitor key process variables, detect deviations, and trigger timely corrective actions. Advanced control systems can help maintain stable operating conditions, optimize reagent dosing, and improve process stability.

Read more about Courier analyzers for real-time, online measurements here>>

Read more about Performance Centers for connected remote support here>>


  1. Improved froth management: Enhancing froth management strategies can address issues related to froth stability, froth transportation, and froth recovery. Mine sites can explore innovative froth crowding designs, froth washing techniques, or froth visualization technologies to improve froth characteristics and concentrate handling.

Read more about flotation froth management here>>

Read more about FrothSense here>>


  1. Expert consultation and support: Mine sites may engage external experts or consultants specializing in flotation to provide specialized knowledge, conduct audits, or offer recommendations for addressing specific issues. These experts can bring in-depth expertise, experience from similar operations, and advanced simulation tools to assist with problem-solving and optimization efforts.

Read more about flotation speed optimization here>>


  1. Pilot-scale testing: In some cases, mine sites may opt for pilot-scale testing to evaluate the performance of alternative flotation processes, equipment, or reagents. Pilot plants allow for the testing of different scenarios on a smaller scale before implementing changes at the full-scale operation. This approach can help validate the effectiveness of potential solutions and mitigate risks associated with large-scale modifications.

Read more about research and testing here>>

Each mine site's specific circumstances will dictate the most suitable options for fixing, modernizing, or upgrading their flotation systems. It's crucial to consider factors such as the nature of the flotation issues, the scale of the operation, budgetary constraints, and the potential return on investment when deciding on the appropriate course of action.

The benefits of conducting regular flotation inspections

Regular flotation inspections offer several benefits for mine sites and their flotation operations. Here are some advantages of conducting these inspections on a routine basis:

  • Early detection of issues
  • Improved process efficiency
  • Cost savings
  • Enhanced product quality
  • Increased equipment reliability
  • Enhanced safety
  • Continuous improvement

Overall, conducting regular flotation inspections empowers mine sites to maintain operational control, optimize performance, and mitigate potential issues. It supports a proactive mindset focused on continuous improvement, cost savings, and maximizing the value of mineral resources.

Read more about flotation inspections here>>

Read more about life cycle services here>>
