Metso Full portfolio NW Rapid™ portable crushers
Nordwheeler NW Rapid™ portable crushers and plants can be re-located on road transport in 1-2 years making them an ideal solution for highway, airport or dam construction projects. The portable plants are fast to deliver, quick to set up and a sustainable choice with electric power, making crushing permitting easier in many countries.
Pre-designed plant layouts for fast delivery and easier permitting

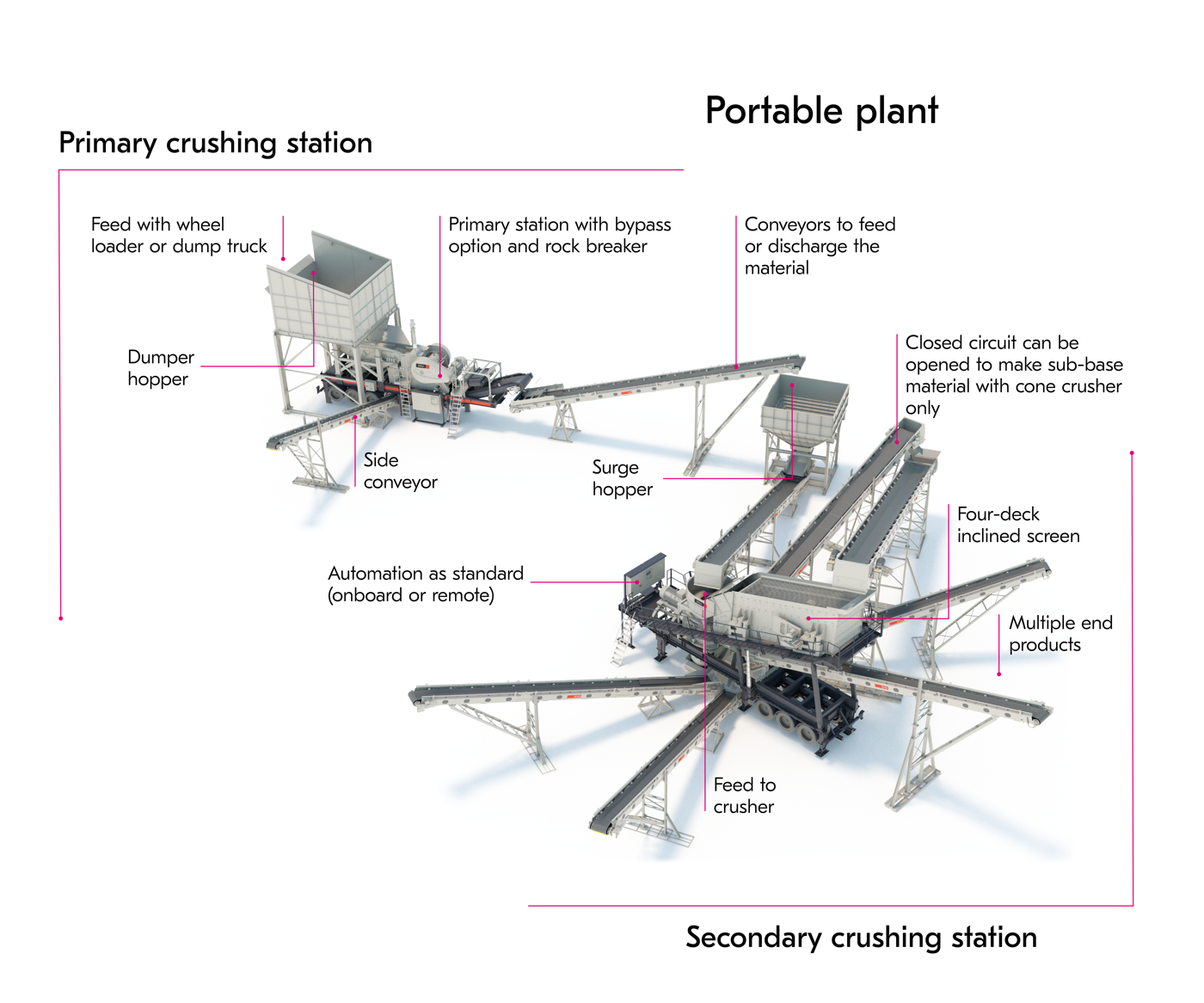

NW Rapid provides pre-designed plant layouts and process flowsheets for a wide range of aggregate applications and production capacities. The portable plant is designed with primary, secondary and tertiary crushing stations that include portable crushers, feeders and conveyors - all designed to fit together seamlessly.

With ready-made process flowsheets and the standard machine offering, the entire crushing plant can be up and running withing weeks instead of months. In many cases, also the crushing permit is easier to get for a portable plant than for a stationary plant. The crushers are mounted on the chassis and no heavy concrete foundations and steel structures are needed at the site.

nw rapid portable
Check the video
00:00
Quick to set up and easy to relocate

Portable crushing plants are ideal for 1-2 years of crushing operations in one location such as highway, bridge, airport or dam construction projects. The equipment can be re-located on site – also called pit portable - and transported on road to a new location by a standard truck. In many cases, no special transportation permit is needed.

The NW Rapid machines are specially designed for quick set up for the entire crushing and screening plant. Thanks to hydraulically adjusted support legs and other functions, no heavy cranes are needed. The wheel-mounted chassis also reduces the need for heavy concrete foundations.

Process control and remote use as a standard

Process control is a standard feature in NW Rapid portable solutions. It optimizes, monitors and controls the crushing stations. The IC control system also includes a Remote User Interface (RUI) with no extra license cost. You can control the entire process with a PC from the control room. No additional programming or software is needed as the RUI is displayed on a browser.

A remote process control increases the safety of the employees as the process can be adjusted from the control room without stopping it. Automatic process control increases productivity and preventive maintenance, while at the same time improves the quality and consistency of the end product.

Process control and remote use as a standard
Check the video
00:00
Proven Metso crushers for more flexibility in crushing operations
Proven Metso crushers for more flexibility in crushing operations

Nordwheeler portable crushers are equipped with the proven Metso crushers such as Nordberg® HP, GP and C series as well as Barmac® and HRC. The range has models with or without a screener, making it even more flexible to change the process layout according to the feed material or end product requirement changes.

Nordwheeler plants are powered by electricity. By using renewable energy sources, the operation is even more sustainable, an increasingly important feature when applying for crushing permits as well as when quoting for new jobs with strict sustainability requirements.

NW Rapid offering includes aggregate crushing and screening plants for 250 and 500 tonnes per hour capacity.

Select your NW Rapid™ solution.
