Handbook: Wear protection solutions you can count on
Wear lining and sheeting
Soft or hard, wet or dry applications.
Our rubber sheeting offers long wear life to them all.

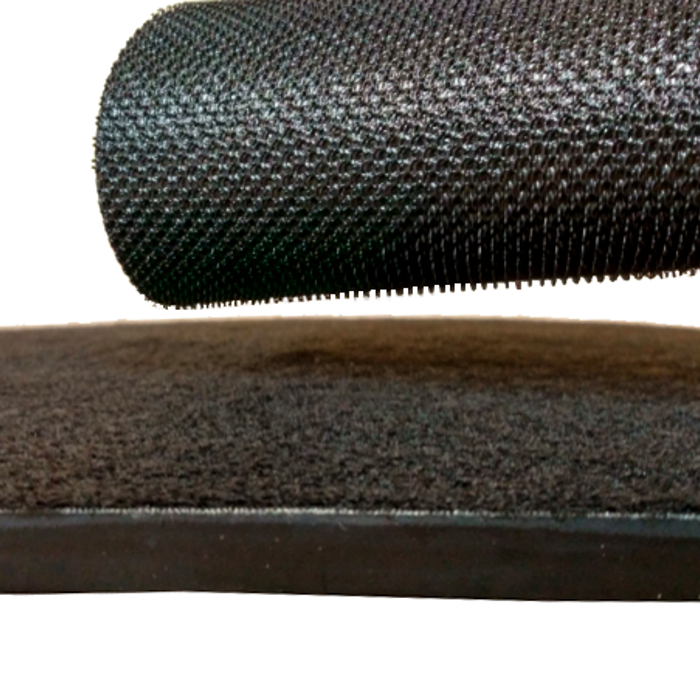

We offer adhesive as well hook-and-loop solutions to make maintenance quick and easy.

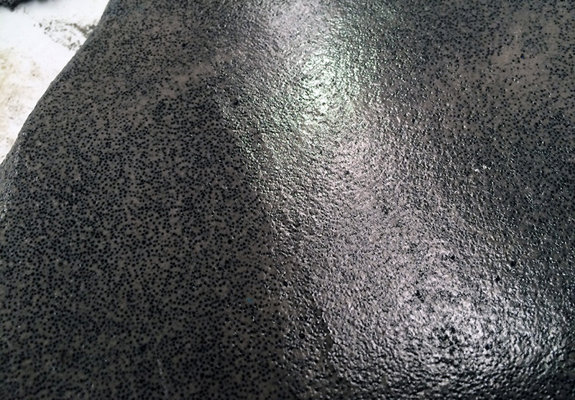

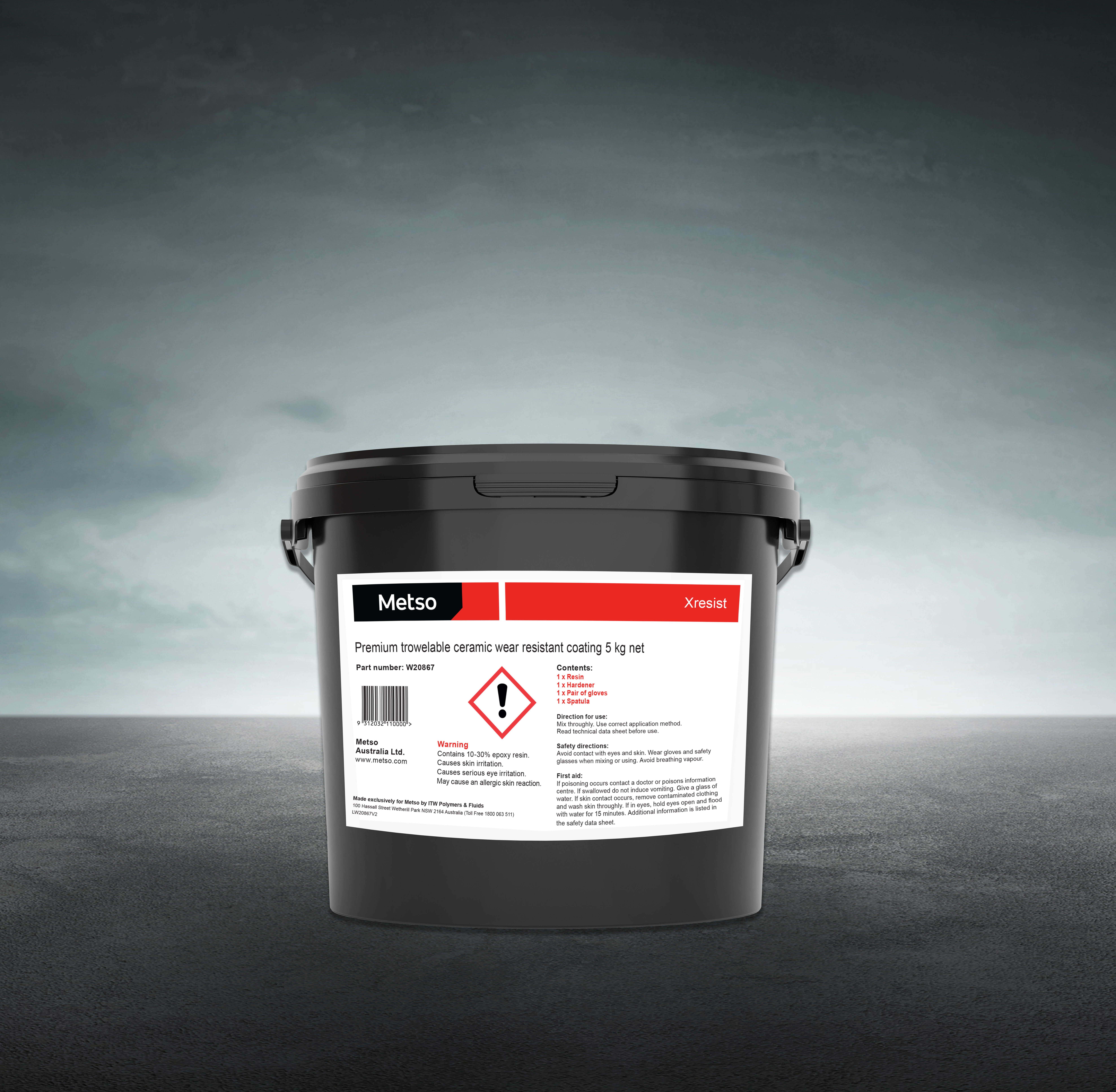

Xresist™ is a high density, alumina ceramic bead-filled toughened epoxy system designed for protecting equipment from wear and abrasion caused by handling and processing particulate matter in solid or slurry form. It is ideal for use in transfer chutes, feed boxes and sumps.

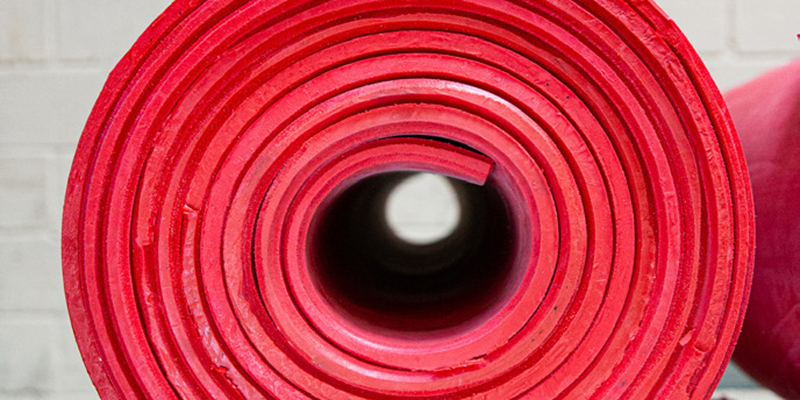

A rubber lining with outstanding properties in terms of high tensile strength, maximal elongation to break, strong tear resistance and excellent resistance to abrasion and corrosion. Perfect for sliding wear in wet applications.

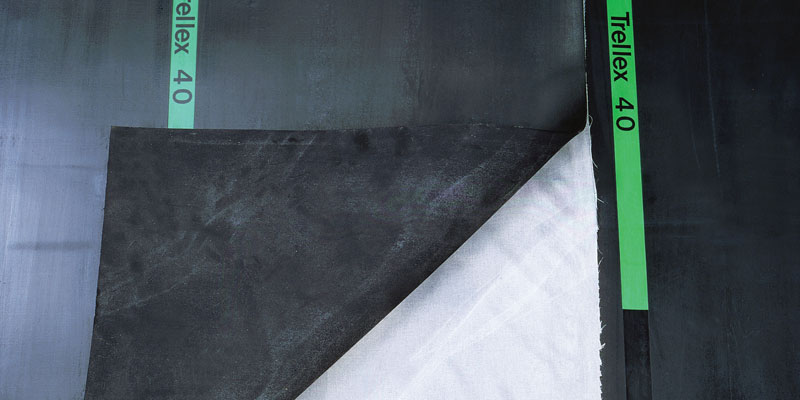

Sheeting intended mainly for sliding and blasting abrasion and for small particle sizes. Extremely high wear resistance against fine-grained, slurried materials. Tolerates operating temperatures of 60–70°C. Available in 3 options: "smooth", "contact layer" and "tear off".

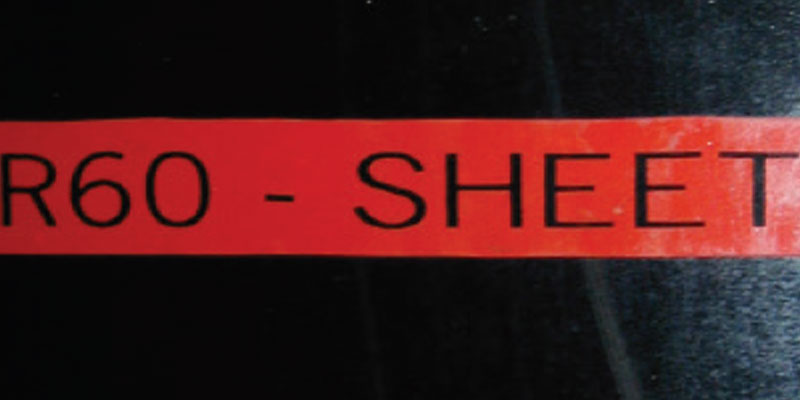

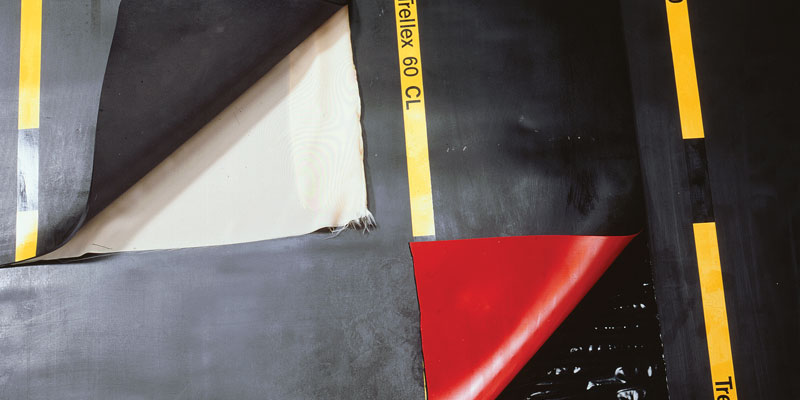

A rubber grade satisfying extremely high requirements of wear and tear and of impacting. Outstanding when the abrasive material contains large particle sizes. Has extremely good tensile strength and tear resistance. Tolerates operating temperatures of 70 – 80°C. Withstands moderate concentrations of chemicals and oils. Available in 3 options: "smooth", "contact layer" and "tear off".
Wear-resistant rubber sheeting for applications where good wear resistance is required. Moderate tensile strength and tear resistance. Genuine allround sheeting which can be used for the most diverse applications.

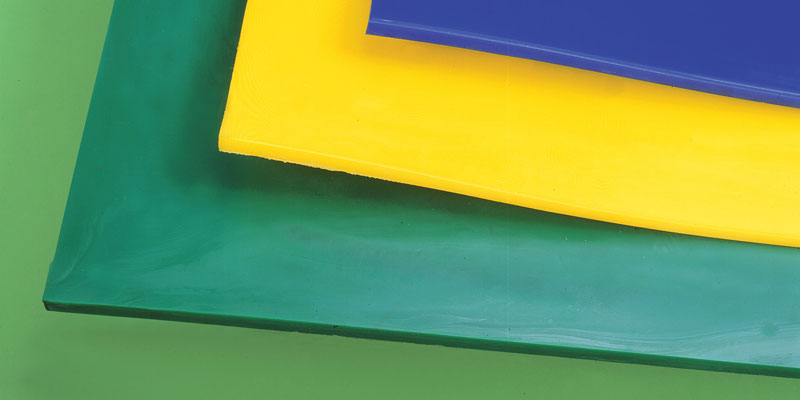

Plain polyurethane sheeting without reinforcement that can be fastened in several ways in different types of applications. It provides good abrasion resistance, to fine and medium sized particles. The polyurethane wear resistant sheeting normally has good resistance to oil and very good ozone resistance. Excellent wear resistance especially in wet applications.
Changing out wear liners can be a risky, costly and time consuming exercise, particularly in chutes with limited or no access to ...
WearSense™ is a wireless online wear monitoring system. It can be fitted to any metallic or ceramic liners independent of attachment ...
Improve worker’s safety by eliminating manual handling while at the same time facilitating the quicker and easier replacement of wear liner.
Improve uptime and throughput by using high-quality metallic wear liners with an optimized design.
Improve the lifetime of equipment, improve safety, reduce vibration and lower noise levels.
Ceramic wear lining is designed to be extremely resistant to abrasion even in high material flows and speeds, preventing material build-up.
Polyurethane wear liners provide excellent wear resistance in applications with sliding wear while reducing noise and vibrations.
